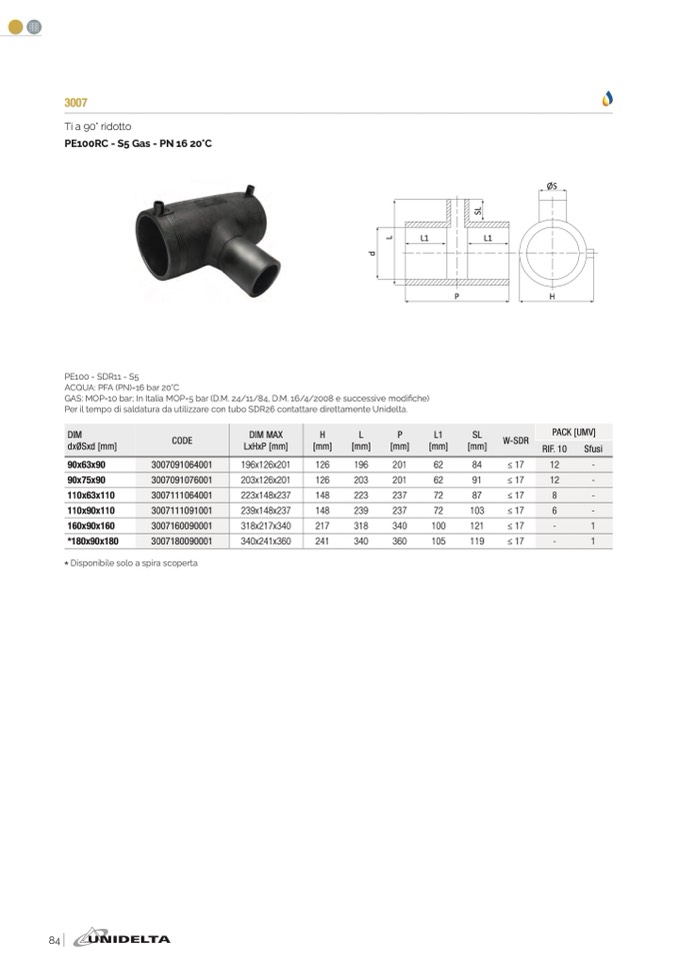

Ti a 90° ridotto

PE100RC - S5 Gas - PN 16 20°

C

ØS

S

L

L

L1

L1

d

P

H

PE100 - SDR11 - S

5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modi

fiche

)

Per il tempo di saldatura da utilizzare con tubo SDR26 contattare direttamente Unidelta.

DI

M

dxØSxd [mm]

CODE

LxHxP [mm]

DIM MAX

H

[mm

]

L

[mm

]

P

[mm

]

L

1

[mm

]

SL

[mm] W-SDR PACK [UMV]

RIF. 10

Sfusi

90x63x90

3007091064001

196x126x201

126

196

201

62

84

≤ 17

12

-

90x75x90

3007091076001

203x126x201

126

203

201

62

91

≤ 17

12

-

110x63x110

3007111064001

223x148x237

148

223

237

72

87

≤ 17

8

-

110x90x110

3007111091001

239x148x237

148

239

237

72

103

≤ 17

6

-

160x90x160

3007160090001

318x217x340

217

318

340

100

121

≤ 17

-

1

*180x90x180

3007180090001

340x241x360

241

340

360

105

119

≤ 17

-

1

* Disponibile solo a spira scoperta
