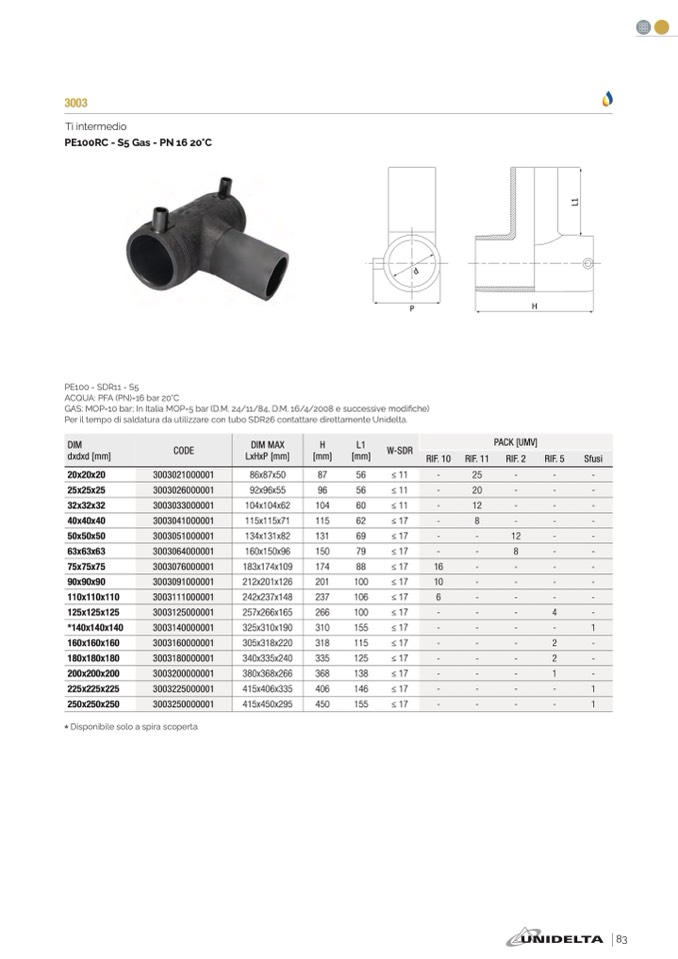

300

3

Ti intermedi

o

PE100RC - S5 Gas - PN 16 20°

C

L

1

d

P

H

PE100 - SDR11 - S

5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modi

fiche

)

Per il tempo di saldatura da utilizzare con tubo SDR26 contattare direttamente Unidelta.

H

[mm

]

L

1

[mm] W-SDR

PACK [UMV]

RIF. 10 RIF. 11

RIF. 2

RIF. 5

Sfus

i

DI

M

dxdxd [mm]

CODE

LxHxP [mm]

DIM MAX

20x20x20

3003021000001

86x87x50

87

56

≤ 11

-

25

-

-

-

25x25x25

3003026000001

92x96x55

96

56

≤ 11

-

20

-

-

-

32x32x32

3003033000001

104x104x62

104

60

≤ 11

-

12

-

-

-

40x40x40

3003041000001

115x115x71

115

62

≤ 17

-

8

-

-

-

50x50x50

3003051000001

134x131x82

131

69

≤ 17

-

-

12

-

-

63x63x63

3003064000001

160x150x96

150

79

≤ 17

-

-

8

-

-

75x75x75

3003076000001

183x174x109

174

88

≤ 17

16

-

-

-

-

90x90x90

3003091000001

212x201x126

201

100

≤ 17

10

-

-

-

-

110x110x110

3003111000001

242x237x148

237

106

≤ 17

6

-

-

-

-

125x125x125

3003125000001

257x266x165

266

100

≤ 17

-

-

-

4

-

*140x140x140

3003140000001

325x310x190

310

155

≤ 17

-

-

-

-

1

160x160x160

3003160000001

305x318x220

318

115

≤ 17

-

-

-

2

-

180x180x180

3003180000001

340x335x240

335

125

≤ 17

-

-

-

2

-

200x200x200

3003200000001

380x368x266

368

138

≤ 17

-

-

-

1

-

225x225x225

3003225000001

415x406x335

406

146

≤ 17

-

-

-

-

1

250x250x250

3003250000001

415x450x295

450

155

≤ 17

-

-

-

-

1

* Disponibile solo a spira scoperta

83
