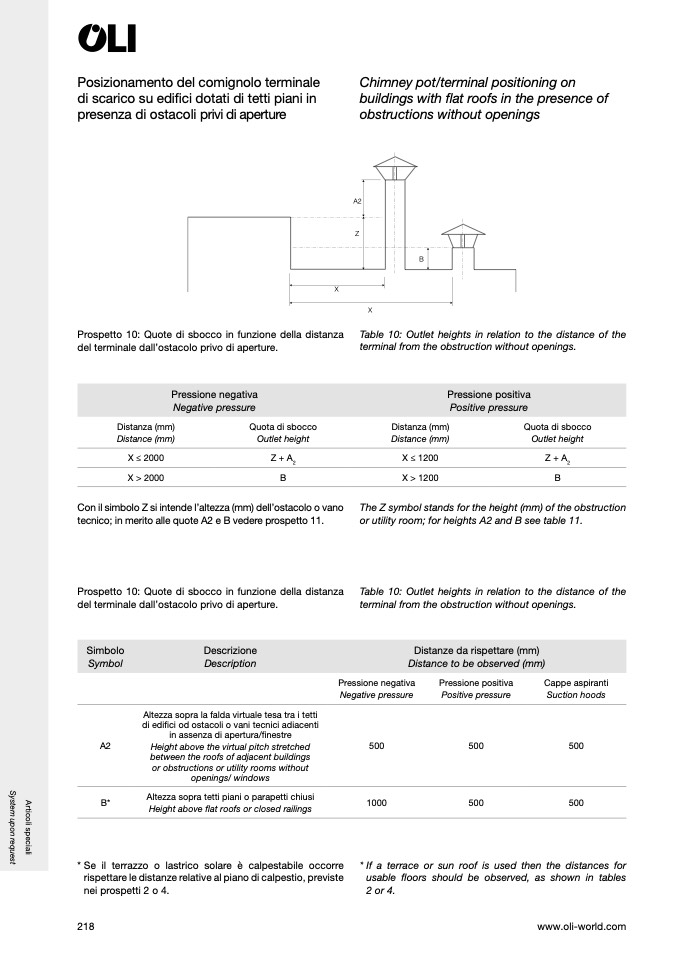

Posizionamento del comignolo terminale

di scarico su edifici dotati di tetti piani in

presenza di ostacoli privi di aperture

Chimney pot/terminal positioning on

buildings with flat roofs in the presence of

obstructions without openings

A2

X

X

Prospetto 10: Quote di sbocco in funzione della distanza

del terminale dall’ostacolo privo di aperture.

Table 10: Outlet heights in relation to the distance of the

terminal from the obstruction without openings.

Pressione negativa

Negative pressure

Pressione positiva

Positive pressure

Distanza (mm)

Distance (mm)

X ≤ 2000

X > 2000

Quota di sbocco

Outlet height

Z + A

2

B

Distanza (mm)

Distance (mm)

X ≤ 1200

X > 1200

Quota di sbocco

Outlet height

Z + A

2

B

Con il simbolo Z si intende l’altezza (mm) dell’ostacolo o vano

tecnico; in merito alle quote A2 e B vedere prospetto 11.

Prospetto 10: Quote di sbocco in funzione della distanza

del terminale dall’ostacolo privo di aperture.

The Z symbol stands for the height (mm) of the obstruction

or utility room; for heights A2 and B see table 11.

Table 10: Outlet heights in relation to the distance of the

terminal from the obstruction without openings.

Simbolo

Symbol

Descrizione

Description

Distanze da rispettare (mm)

Distance to be observed (mm)

A2

B*

Altezza sopra la falda virtuale tesa tra i tetti

di edifici od ostacoli o vani tecnici adiacenti

in assenza di apertura/finestre

Height above the virtual pitch stretched

between the roofs of adjacent buildings

or obstructions or utility rooms without

openings/ windows

Altezza sopra tetti piani o parapetti chiusi

Height above flat roofs or closed railings

Pressione negativa

Negative pressure

500

1000

Pressione positiva

Positive pressure

500

500

Cappe aspiranti

Suction hoods

500

500

* Se il terrazzo o lastrico solare è calpestabile occorre

rispettare le distanze relative al piano di calpestio, previste

nei prospetti 2 o 4.

* If a terrace or sun roof is used then the distances for

usable floors should be observed, as shown in tables

2 or 4.
