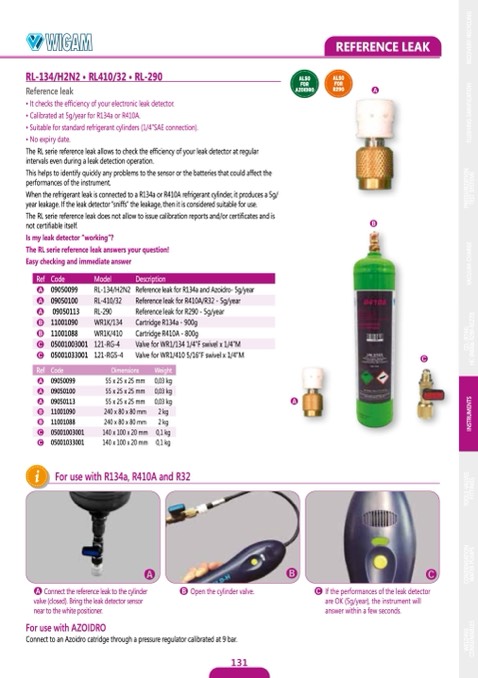

RL-134/H2N2 • RL410/32 • RL-290

Reference leak

• It checks the efficiency of your electronic leak detector.

• Calibrated at 5g/year for R134a or R410A.

• Suitable for standard refrigerant cylinders (1/4”SAE connection).

• No expiry date.

The RL serie reference leak allows to check the efficiency of your leak detector at regular

intervals even during a leak detection operation.

This helps to identify quickly any problems to the sensor or the batteries that could affect the

performances of the instrument.

When the refrigerant leak is connected to a R134a or R410A refrigerant cylinder, it produces a 5g/

year leakage. If the leak detector “sniffs” the leakage, then it is considered suitable for use.

The RL serie reference leak does not allow to issue calibration reports and/or certificates and is

not certifiable itself.

ALSO

ALSO

FOR

FOR

AZOIDRO

R290

A

REFERENCE LEAK

Is my leak detector “working”?

The RL serie reference leak answers your question!

Easy checking and immediate answer

B

A

Ref

Code

Model

Description

A

09050099

RL-134/H2N2

Reference leak for R134a and Azoidro- 5g/year

A

09050100

RL-410/32

Reference leak for R410A/R32 - 5g/year

A

09050113

RL-290

Reference leak for R290 - 5g/year

B

11001090

WR1K/134

Cartridge R134a - 900g

B

11001088

WR1K/410

Cartridge R410A - 800g

C

05001003001

121-RG-4

Valve for WR1/134 1/4”F swivel x 1/4”M

C

05001033001

121-RG5-4

Valve for WR1/410 5/16”F swivel x 1/4”M

C

Ref

Code

Dimensions

Weight

A

09050099

55 x 25 x 25 mm

0,03 kg

A

09050100

55 x 25 x 25 mm

0,03 kg

A

09050113

55 x 25 x 25 mm

0,03 kg

B

11001090

240 x 80 x 80 mm

2kg

B

11001088

240 x 80 x 80 mm

2kg

C

05001003001

140 x 100 x 20 mm

0,1 kg

C

05001033001

140 x 100 x 20 mm

0,1 kg

i

For use with R134a, R410A and R32

A Connect the reference leak to the cylinder

valve (closed). Bring the leak detector sensor

near to the white positioner.

For use with AZOIDRO

B Open the cylinder valve.

C If the performances of the leak detector

are OK (5g/year), the instrument will

answer within a few seconds.

Connect to an Azoidro catridge through a pressure regulator calibrated at 9 bar.
