INSTRUMENTS

CO

2

(R744) LEAK DETECTORS

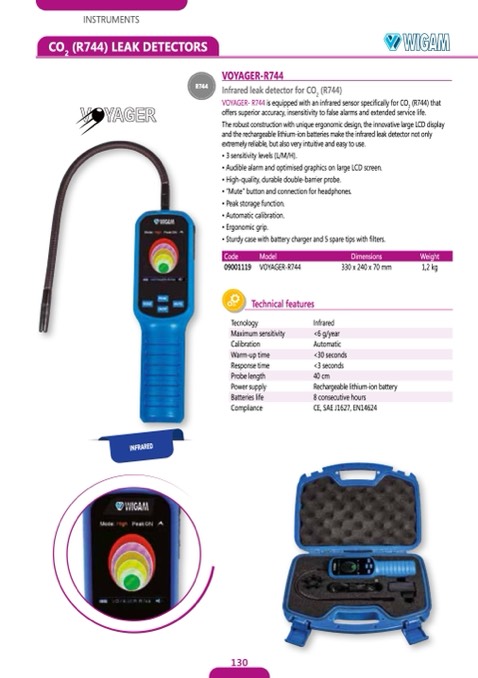

VOYAGER-R744

R744

Infrared leak detector for CO

2

(R744)

VOYAGER- R744 is equipped with an infrared sensor specifically for CO

2

(R744) that

offers superior accuracy, insensitivity to false alarms and extended service life.

The robust construction with unique ergonomic design, the innovative large LCD display

and the rechargeable lithium-ion batteries make the infrared leak detector not only

extremely reliable, but also very intuitive and easy to use.

• 3 sensitivity levels (L/M/H).

• Audible alarm and optimised graphics on large LCD screen.

• High-quality, durable double-barrier probe.

• “Mute” button and connection for headphones.

• Peak storage function.

• Automatic calibration.

• Ergonomic grip.

• Sturdy case with battery charger and 5 spare tips with filters.

Code

Model

09001119 VOYAGER-R744

Technical features

Dimensions

330 x 240 x 70 mm

Weight

1,2 kg

Tecnology

Maximum sensitivity

Calibration

Warm-up time

Response time

Probe length

Power supply

Batteries life

Compliance

Infrared

<6 g/year

Automatic

<30 seconds

<3 seconds

40 cm

Rechargeable lithium-ion battery

8 consecutive hours

CE, SAE J1627, EN14624

INFRARED

130
