HC (R600a - R290 - R1270)
ATEX RECOVERY UNITS
NEW
HC
R600a-R290
R1270
CE Atex II 3G

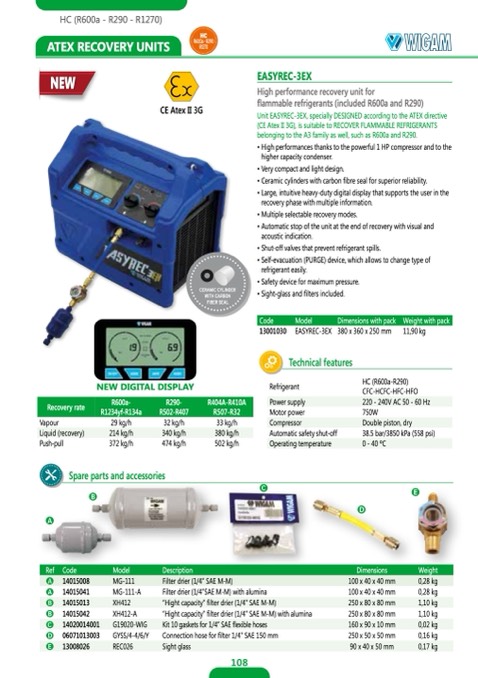

EASYREC-3EX
High performance recovery unit for
flammable refrigerants (included R600a and R290)
Unit EASYREC-3EX, specially DESIGNED according to the ATEX directive
(CE Atex II 3G), is suitable to RECOVER FLAMMABLE REFRIGERANTS
belonging to the A3 family as well, such as R600a and R290.
• High performances thanks to the powerful 1 HP compressor and to the
higher capacity condenser.
• Very compact and light design.
• Ceramic cylinders with carbon fibre seal for superior reliability.
• Large, intuitive heavy-duty digital display that supports the user in the
recovery phase with multiple information.
• Multiple selectable recovery modes.
• Automatic stop of the unit at the end of recovery with visual and
acoustic indication.
• Shut-off valves that prevent refrigerant spills.
• Self-evacuation (PURGE) device, which allows to change type of
refrigerant easily.
CERAMIC CYLINDER
WITH CARBON
FIBER SEAL
Code
Model
Dimensions with pack
Weight with pack
13001030
EASYREC-3EX
380 x 360 x 250 mm
11,90 kg
NEW DIGITAL DISPLAY
29 kg/h
32 kg/h
372 kg/h
474 kg/h
Spare parts and accessories
• Safety device for maximum pressure.
• Sight-glass and filters included.
Technical features
Refrigerant
HC (R600a-R290)
CFC-HCFC-HFC-HFO
Power supply
220 - 240V AC 50 - 60 Hz
Motor power
750W
Compressor
Double piston, dry
Automatic safety shut-off
38.5 bar/3850 kPa (558 psi)
Operating temperature
0 - 40 oC
Recovery rate
R600a-
R1234yf-R134a
R290-
R502-R407
R404A-R410A
R507-R32
Vapour
Push-pull
33 kg/h
502 kg/h
Liquid (recovery)
214 kg/h
340 kg/h
380 kg/h
B
B
C
D
E
14015013
14015042
14020014001
06071013003
13008026
XH412-A
G19020-WIG
GYSS/4-4/6/Y
REC026
“Hight capacity” filter drier (1/4” SAE M-M)
“Hight capacity” filter drier (1/4” SAE M-M) with alumina
Kit 10 gaskets for 1/4” SAE flexible hoses
Connection hose for filter 1/4” SAE 150 mm
Sight glass
C
250 x 80 x 80 mm
160 x 90 x 10 mm
250 x 50 x 50 mm
90 x 40 x 50 mm
E
B
A
Ref
A
Code
14015008
Model
MG-111
D
A
14015041
MG-111-A
XH412
Description
Filter drier (1/4” SAE M-M)
Filter drier (1/4”SAE M-M) with alumina
Dimensions
100 x 40 x 40 mm
100 x 40 x 40 mm
250 x 80 x 80 mm
Weight
0,28 kg
0,28 kg
1,10 kg
1,10 kg
0,02 kg
0,16 kg
0,17 kg
108
