HC
R600a-R290
R1270

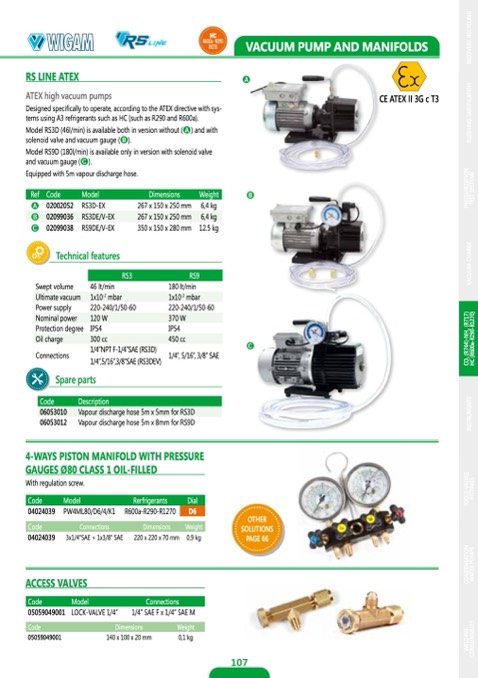

VACUUM PUMP AND MANIFOLDS
RS LINE ATEX
ATEX high vacuum pumps
Designed specifically to operate, according to the ATEX directive with sys-
tems using A3 refrigerants such as HC (such as R290 and R600a).
Model RS3D (46l/min) is available both in version without (A) and with
solenoid valve and vacuum gauge (B).
Model RS9D (180l/min) is available only in version with solenoid valve
and vacuum gauge (C).
A
Equipped with 5m vapour discharge hose.
Technical features
B
CE ATEX II 3G c T3
Ref
Code
Model
Dimensions
Weight
A
02002052
RS3D-EX
267 x 150 x 250 mm
6,4 kg
B
02099036
RS3DE/V-EX
267 x 150 x 250 mm
6,4 kg
C
02099038
RS9DE/V-EX
350 x 150 x 280 mm
12.5 kg
RS3
RS9
Swept volume
Power supply
Protection degree
46 lt/min
220-240/1/50-60
IP54
180 lt/min
220-240/1/50-60
IP54
Ultimate vacuum
1x10
-2
mbar
1x10
-2
mbar
Nominal power
120 W
370 W
Oil charge
300 cc
450 cc
Connections
1/4”NPT F-1/4”SAE (RS3D)
1/4”,5/16”,3/8”SAE (RS3DEV)
1/4”, 5/16”, 3/8” SAE
Spare parts
C
Code
Description
06053010
Vapour discharge hose 5m x 5mm for RS3D
06053012
Vapour discharge hose 5m x 8mm for RS9D
4-WAYS PISTON MANIFOLD WITH PRESSURE
GAUGES Ø80 CLASS 1 OIL-FILLED
With regulation screw.
Code
Model
Rerfrigerants
Dial
04024039
PW4ML80/D6/4/K1
R600a-R290-R1270
D6
OTHER
SOLUTIONS
PAGE 66
Code
Connections
Dimensions
Weight
04024039
3x1/4”SAE + 1x3/8” SAE
220 x 220 x 70 mm
0,9 kg
ACCESS VALVES
Code
Dimensions
05059049001
140 x 100 x 20 mm
Weight
Code
Model
Connections
05059049001
LOCK-VALVE 1/4”
1/4” SAE F x 1/4” SAE M
0,1 kg
