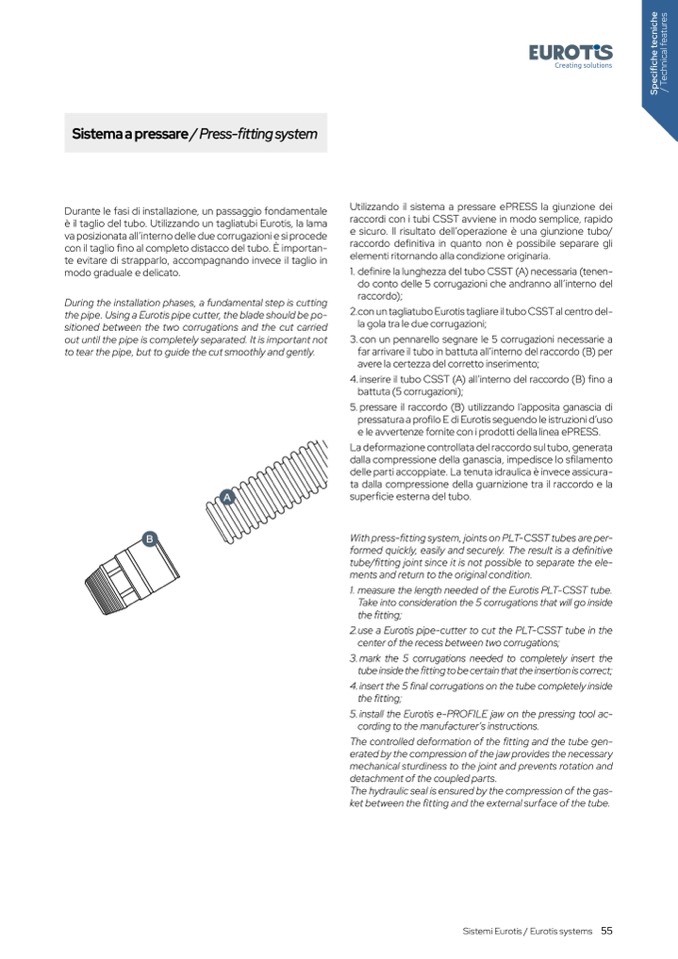

Sistema a pressare / Press-fitting syste

m

Durante le fasi di installazione, un passaggio fondamentale

è il taglio del tubo. Utilizzando un tagliatubi Eurotis, la lam

a

va posizionata all’interno delle due corrugazioni e si procede

con il taglio

fino al completo distacco del tubo. È importan-

te evitare di strapparlo, accompagnando invece il taglio i

n

modo graduale e delicato

.

During the installation phases, a fundamental step is cuttin

g

the pipe. Using a Eurotis pipe cutter, the blade should be po

-

sitioned between the two corrugations and the cut carrie

d

out until the pipe is completely separated. It is important not

to tear the pipe, but to guide the cut smoothly and gently

.

A

B

S

p

e

c

i

f

i

c

h

e

t

e

c

n

i

c

h

e

/

T

e

c

h

n

i

c

a

l

f

e

a

t

u

r

e

s

Utilizzando il sistema a pressare ePRESS la giunzione dei

raccordi con i tubi CSST avviene in modo semplice, rapid

o

e sicuro. Il risultato dell’operazione è una giunzione tubo

/

raccordo de

finitiva in quanto non è possibile separare gl

i

elementi ritornando alla condizione originaria

.

1. de

finire la lunghezza del tubo CSST (A) necessaria (tenen

-

do conto delle 5 corrugazioni che andranno all’interno de

l

raccordo);

2. con un tagliatubo Eurotis tagliare il tubo CSST al centro del

-

la gola tra le due corrugazioni

;

3. con un pennarello segnare le 5 corrugazioni necessarie

a

far arrivare il tubo in battuta all’interno del raccordo (B) pe

r

avere la certezza del corretto inserimento

;

4. inserire il tubo CSST (A) all’interno del raccordo (B)

fino a

battuta (5 corrugazioni)

;

5. pressare il raccordo (B) utilizzando l’apposita ganascia di

pressatura a pro

filo E di Eurotis seguendo le istruzioni d’us

o

e le avvertenze fornite con i prodotti della linea ePRESS

.

La deformazione controllata del raccordo sul tubo, generata

dalla compressione della ganascia, impedisce lo s

filamento

delle parti accoppiate. La tenuta idraulica è invece assicura

-

ta dalla compressione della guarnizione tra il raccordo e l

a

super

ficie esterna del tubo

.

With press-fitting system, joints on PLT-CSST tubes are per-

formed quickly, easily and securely. The result is a definitive

tube/

fitting joint since it is not possible to separate the ele-

ments and return to the original condition.

1. measure the length needed of the Eurotis PLT-CSST tube.

Take into consideration the 5 corrugations that will go inside

the fitting;

2. use a Eurotis pipe-cutter to cut the PLT-CSST tube in the

center of the recess between two corrugations;

3. mark the 5 corrugations needed to completely insert th

e

tube inside the fitting to be certain that the insertion is correct

;

4. insert the 5 final corrugations on the tube completely insid

e

the fitting;

5. install the Eurotis e-PROFILE jaw on the pressing tool ac

-

cording to the manufacturer’s instructions

.

The controlled deformation of the fitting and the tube gen-

erated by the compression of the jaw provides the necessary

mechanical sturdiness to the joint and prevents rotation and

detachment of the coupled parts.

The hydraulic seal is ensured by the compression of the gas-

ket between the fitting and the external surface of the tube

.
