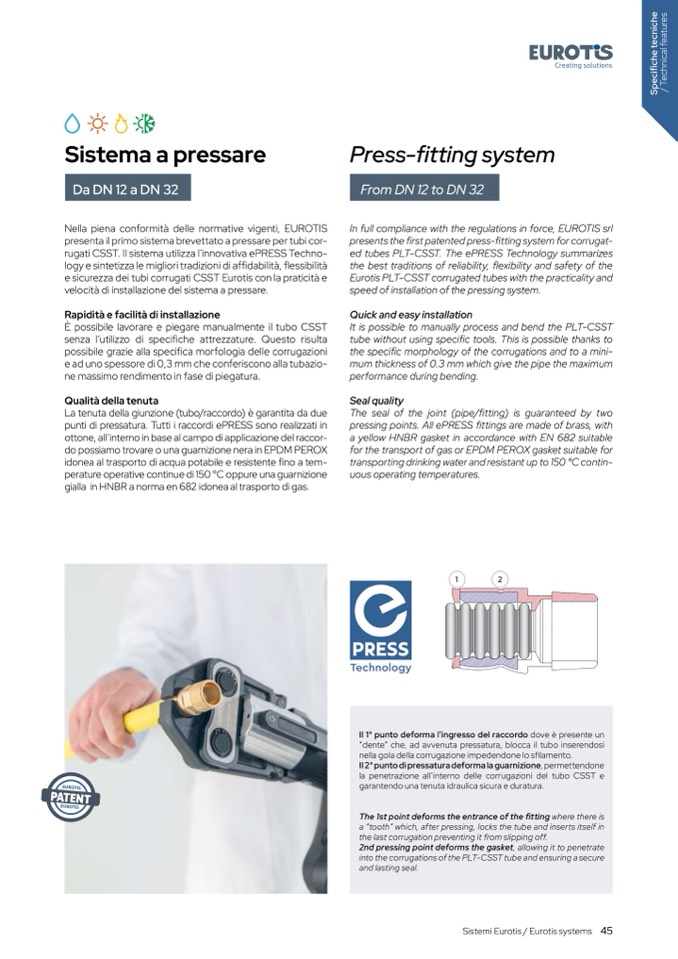

Sistema a pressare

Press-fitting system

Da DN 12 a DN 32

From DN 12 to DN 32

Nella piena conformità delle normative vigenti, EUROTI

S

presenta il primo sistema brevettato a pressare per tubi cor

-

rugati CSST. II sistema utilizza l'innovativa ePRESS Techno-

logy e sintetizza le migliori tradizioni di affidabilità,

flessibilit

à

e sicurezza dei tubi corrugati CSST Eurotis con la praticità e

velocità di installazione del sistema a pressare

.

Rapidità e facilità di installazion

e

È possibile lavorare e piegare manualmente il tubo CSS

T

senza l’utilizzo di specifiche attrezzature. Questo risulta

possibile grazie alla speci

fica morfologia delle corrugazion

i

e ad uno spessore di 0,3 mm che conferiscono alla tubazio-

ne massimo rendimento in fase di piegatura

.

Qualità della tenut

a

La tenuta della giunzione (tubo/raccordo) è garantita da due

punti di pressatura. Tutti i raccordi ePRESS sono realizzati i

n

ottone, all’interno in base al campo di applicazione del raccor

-

do possiamo trovare o una guarnizione nera in EPDM PEROX

idonea al trasporto di acqua potabile e resistente

fino a tem-

perature operative continue di 150 °C oppure una guarnizion

e

gialla

in HNBR a norma en 682 idonea al trasporto di gas

.

In full compliance with the regulations in force, EUROTIS sr

l

presents the first patented press-fitting system for corrugat-

ed tubes PLT-CSST. The ePRESS Technology summarize

s

the best traditions of reliability, flexibility and safety of the

Eurotis PLT-CSST corrugated tubes with the practicality an

d

speed of installation of the pressing system.

Quick and easy installation

It is possible to manually process and bend the PLT-CSS

T

tube without using specific tools. This is possible thanks t

o

the specific morphology of the corrugations and to a mini

-

mum thickness of 0.3 mm which give the pipe the maximum

performance during bending.

Seal quality

The seal of the joint (pipe/

fitting) is guaranteed by tw

o

pressing points. All ePRESS fittings are made of brass, with

a yellow HNBR gasket in accordance with EN 682 suitable

for the transport of gas or EPDM PEROX gasket suitable for

transporting drinking water and resistant up to 150 °C contin

-

uous operating temperatures.

1

2

Il 1° punto deforma l’ingresso del raccordo dove è presente un

“dente” che, ad avvenuta pressatura, blocca il tubo inserendosi

nella gola della corrugazione impedendone lo sfilamento.

Il 2° punto di pressatura deforma la guarnizione, permettendone

la penetrazione all’interno delle corrugazioni del tubo CSST e

garantendo una tenuta idraulica sicura e duratura.

PAT

EN

T

E

U

RO

T

I

S

EURO

TI

S

The 1st point deforms the entrance of the fitting where there is

a “tooth” which, after pressing, locks the tube and inserts itself i

n

the last corrugation preventing it from slipping off.

2nd pressing point deforms the gasket, allowing it to penetrate

into the corrugations of the PLT-CSST tube and ensuring a secur

e

and lasting seal.
