Nota: Per gli impianti solari termici con integrazione al riscal

-

damento, oltre alla localizzazione geografica (nord, centro

o

sud Italia) bisogna anche considerare situazioni locali parti-

colari e specifiche e l’altezza sul livello del mare (in certi pa-

esi sugli Appennini al sud gli inverni sono più rigidi che ne

i

paesi della pianura padana al nord).

Note: For solar thermal systems with heating support, in ad-

dition to geographical location (north, center or south) mus

t

also be considered the local and specific circumstances, an

d

the height above sea level alike.

Superficie abitata riscaldata (m2

)

Inahabited area to be heated (m²

)

Dimensione delle tubazioni CSS

T

Size of PLT-CSST tube

s

Nord / North

Centro / Centre

Sud / Sout

h

50

75

100

125

150

175

200

225

250

275

300

325

350

375

400

425

450

475

500

DN 15

DN 15

DN 20

DN 20

DN 20

DN 20

DN 25

DN 25

DN 25

DN 25

DN 25

DN 25

DN 32

DN 32

DN 32

DN 32

DN 32

DN 32

DN 32

DN 15

DN 15

DN 15

DN 20

DN 20

DN 20

DN 20

DN 25

DN 25

DN 25

DN 25

DN 25

DN 25

DN 32

DN 32

DN 32

DN 32

DN 32

DN 32

DN 1

5

DN 1

5

DN 1

5

DN 1

5

DN 20

DN 20

DN 20

DN 20

DN 20

DN 20

DN 25

DN 25

DN 25

DN 25

DN 25

DN 25

DN 25

DN 32

DN 32

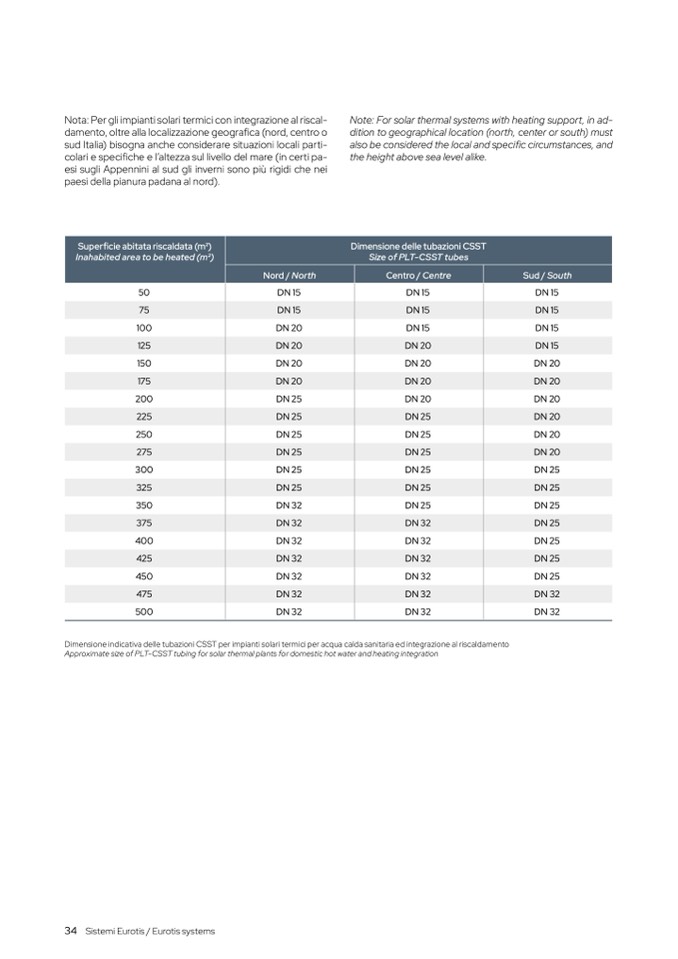

Dimensione indicativa delle tubazioni CSST per impianti solari termici per acqua calda sanitaria ed integrazione al riscaldament

o

Approximate size of PLT-CSST tubing for solar thermal plants for domestic hot water and heating integratio

n

34
