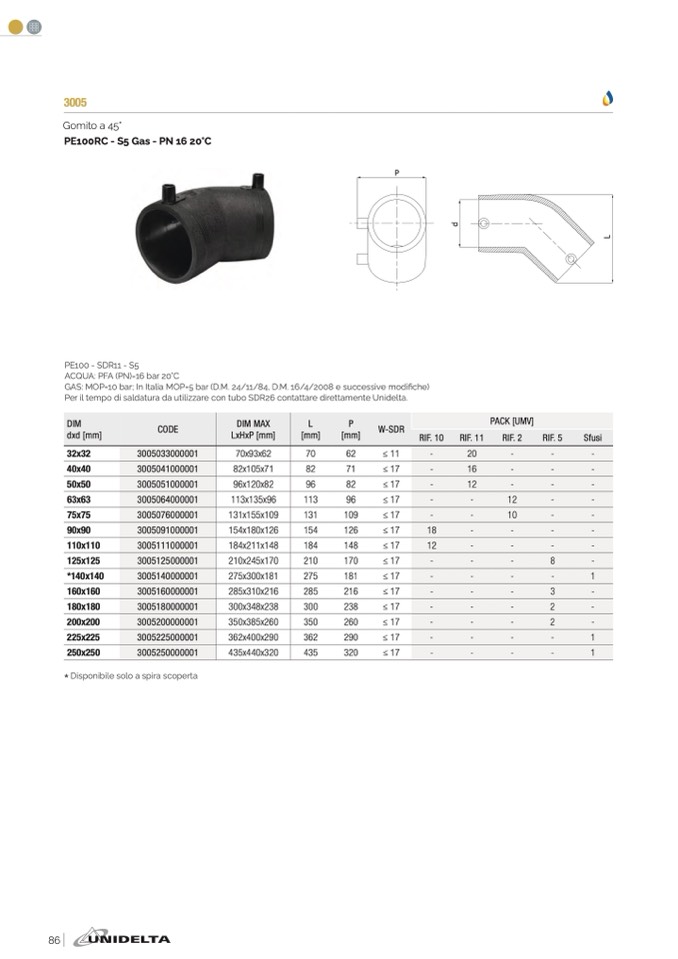

3005

Gomito a 45°

PE100RC - S5 Gas - PN 16 20°C

P

d

L

PE100 - SDR11 - S

5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modi

fiche

)

Per il tempo di saldatura da utilizzare con tubo SDR26 contattare direttamente Unidelta.

DIM

dxd [mm]

CODE

LxHxP [mm]

DIM MAX

L

[mm

]

P

[mm] W-SDR

PACK [UMV

]

RIF. 10

RIF. 11

RIF. 2

RIF. 5

Sfusi

32x32

3005033000001

70x93x62

70

62

≤ 11

-

20

-

-

-

40x40

3005041000001

82x105x71

82

71

≤ 17

-

16

-

-

-

50x50

3005051000001

96x120x82

96

82

≤ 17

-

12

-

-

-

63x63

3005064000001

113x135x96

113

96

≤ 17

-

-

12

-

-

75x75

3005076000001

131x155x109

131

109

≤ 17

-

-

10

-

-

90x90

3005091000001

154x180x126

154

126

≤ 17

18

-

-

-

-

110x110

3005111000001

184x211x148

184

148

≤ 17

12

-

-

-

-

125x125

3005125000001

210x245x170

210

170

≤ 17

-

-

-

8

-

*140x140

3005140000001

275x300x181

275

181

≤ 17

-

-

-

-

1

160x160

3005160000001

285x310x216

285

216

≤ 17

-

-

-

3

-

180x180

3005180000001

300x348x238

300

238

≤ 17

-

-

-

2

-

200x200

3005200000001

350x385x260

350

260

≤ 17

-

-

-

2

-

225x225

3005225000001

362x400x290

362

290

≤ 17

-

-

-

-

1

250x250

3005250000001

435x440x320

435

320

≤ 17

-

-

-

-

1

* Disponibile solo a spira scoperta
