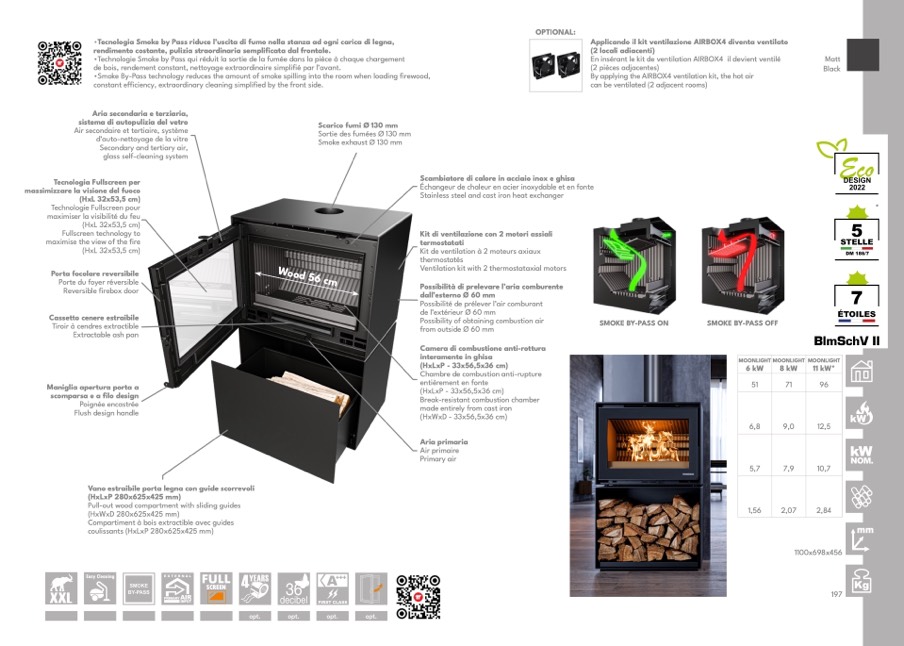

•Tecnologia Smoke by Pass riduce l’uscita di fumo nella stanza ad ogni carica di legna,
rendimento costante, pulizia straordinaria sempli
ficata dal frontale.
•Technologie Smoke by Pass qui r
éduit la sortie de la fumée dans la pi
èce à chaque chargement
de bois, rendement constant, nettoyage extraordinaire simpli
fi
é par l’avant.
OPTIONAL:
Applicando il kit ventilazione AIRBOX4 diventa ventilato
(2 locali adiacenti)
En insérant le kit de ventilation AIRBOX4 il devient ventilé
(2 pièces adjacentes)
•Smoke By-Pass technology reduces the amount of smoke spilling into the room when loading firewood,
constant efficiency, extraordinary cleaning simplified by the front side.
By applying the AIRBOX4 ventilation kit, the hot air
can be ventilated (2 adjacent rooms)
Matt
Black
Aria secondaria e terziaria,
sistema di autopulizia del vetro
Air secondaire et tertiaire, système
d’auto-nettoyage de la vitre
Secondary and tertiary air,
glass self-cleaning system
Tecnologia Fullscreen per
massimizzare la visione del fuoco
(HxL 32x53,5 cm)
Technologie Fullscreen pour
maximiser la visibilit
é du feu
(HxL 32x53,5 cm)
Fullscreen technology to
maximise the view of the
fire
(HxL 32x53,5 cm)
Scarico fumi Ø 130 mm
Porta focolare reversibile
Ventilation kit with 2 thermostataxial motors
Porte du foyer r
éversible
Reversible firebox door
Possibilit
à di prelevare l’aria comburente
dall’esterno Ø 60 mm
Possibilité de pr
élever l’air comburant
de l’extérieur Ø 60 mm
Cassetto cenere estraibile
Possibility of obtaining combustion air
from outside Ø 60 mm
SMOKE BY-PASS ON
SMOKE BY-PASS OFF
Tiroir
à cendres extractible
Extractable ash pan
Maniglia apertura porta a
scomparsa e a filo design
Poign
ée encastr
ée
Flush design handle
Camera di combustione anti-rottura
interamente in ghisa
(HxLxP - 33x56,5x36 cm)
Chambre de combustion anti-rupture
entièrement en fonte
Vano estraibile porta legna con guide scorrevoli
(HxLxP 280x625x425 mm)
Pull-out wood compartment with sliding guides
(HxWxD 280x625x425 mm)
Compartiment
à bois extractible avec guides
coulissants (HxLxP 280x625x425 mm)
SCREEN
1100x698x456
197
opt.
opt.
opt.
opt.
Sortie des fum
ées Ø 130 mm
Smoke exhaust Ø 130 mm
Scambiatore di calore in acciaio inox e ghisa
Échangeur de chaleur en acier inoxydable et en fonte
Stainless steel and cast iron heat exchanger
Kit di ventilazione con 2 motori assiali
termostatati
Kit de ventilation
à 2 moteurs axiaux
thermostatés
(HxLxP - 33x56,5x36 cm)
Break-resistant combustion chamber
made entirely from cast iron
(HxWxD - 33x56,5x36 cm)
Aria primaria
Air primaire
Primary air
*
Wo
od
5
6
c
m
MOONLIGHT
6 kW
MOONLIGHT
8 kW
MOONLIGHT
11 kW*
51
71
96
6,8
9,0
12,5
5,7
7,9
10,7
1,56
2,07
2,84
