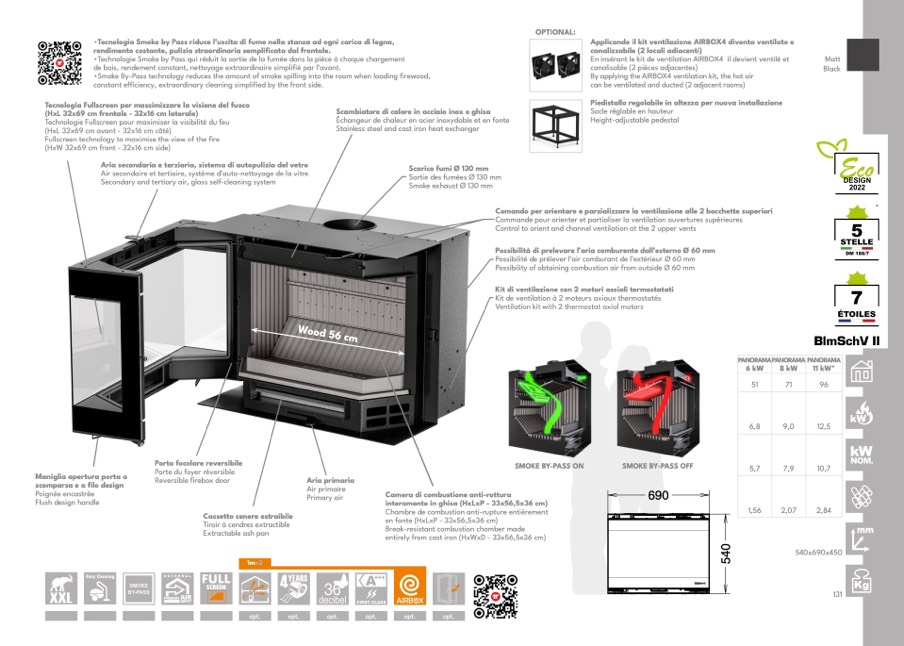

PANORAMA

6 kW

PANORAMA

8 kW

PANORAMA

11 kW*

51

71

96

6,8

9,0

12,5

5,7

7,9

10,7

1,56

450

2,07

2,84

5

4

0

Maniglia apertura porta a

scomparsa e a filo design

Poign

ée encastrée

Flush design handle

Porta focolare reversibile

Porte du foyer réversible

Reversible firebox door

Cassetto cenere estraibile

Tiroir à cendres extractible

Extractable ash pan

1mx2

SCREEN

Aria primaria

Air primaire

Primary air

SMOKE BY-PASS ON

Camera di combustione anti-rottura

interamente in ghisa (HxLxP - 33x56,5x36 cm)

Chambre de combustion anti-rupture entièrement

en fonte (HxLxP - 33x56,5x36 cm)

Break-resistant combustion chamber made

entirely from cast iron (HxWxD - 33x56,5x36 cm)

SMOKE BY-PASS OFF

690

•Tecnologia Smoke by Pass riduce l’uscita di fumo nella stanza ad ogni carica di legna,

rendimento costante, pulizia straordinaria sempli

ficata dal frontale.

•Technologie Smoke by Pass qui r

éduit la sortie de la fumée dans la pi

èce à chaque chargement

de bois, rendement constant, nettoyage extraordinaire simpli

fi

é par l’avant.

•Smoke By-Pass technology reduces the amount of smoke spilling into the room when loading firewood,

constant efficiency, extraordinary cleaning simplified by the front side.

OPTIONAL:

Applicando il kit ventilazione AIRBOX4 diventa ventilato e

canalizzabile (2 locali adiacenti)

En insérant le kit de ventilation AIRBOX4 il devient ventilé et

Matt

canalisable (2 pièces adjacentes)

Black

By applying the AIRBOX4 ventilation kit, the hot air

can be ventilated and ducted (2 adjacent rooms)

Piedistallo regolabile in altezza per nuova installazione

Socle réglable en hauteur

Height-adjustable pedestal

Tecnologia Fullscreen per massimizzare la visione del fuoco

(HxL 32x69 cm frontale - 32x16 cm laterale)

Technologie Fullscreen pour maximiser la visibilité du feu

(HxL 32x69 cm avant - 32x16 cm c

ôté)

Fullscreen technology to maximise the view of the

fire

(HxW 32x69 cm front - 32x16 cm side)

Aria secondaria e terziaria, sistema di autopulizia del vetro

Air secondaire et tertiaire, syst

ème d’auto-nettoyage de la vitre

Secondary and tertiary air, glass self-cleaning system

Scambiatore di calore in acciaio inox e ghisa

Échangeur de chaleur en acier inoxydable et en fonte

Stainless steel and cast iron heat exchanger

Scarico fumi Ø 130 mm

Sortie des fum

ées Ø 130 mm

Smoke exhaust Ø 130 mm

opt.

opt.

opt.

opt.

opt.

opt.

Wo

od

5

6

cm

VISTA ISOMETRICA - SCALA 1:10

Comando per orientare e parzializzare la ventilazione alle 2 bocchette superiori

Commande pour orienter et partialiser la ventilation ouvertures supérieures

Control to orient and channel ventilation at the 2 upper vents

Possibilit

à di prelevare l’aria comburente dall’esterno Ø 60 mm

Possibilité de pr

élever l’air comburant de l’ext

érieur Ø 60 mm

Possibility of obtaining combustion air from outside Ø 60 mm

Kit di ventilazione con 2 motori assiali termostatati

Kit de ventilation à 2 moteurs axiaux thermostat

és

Ventilation kit with 2 thermostat axial motors

*

V

I

S

T

A

F

540x690x450

131

4

0
