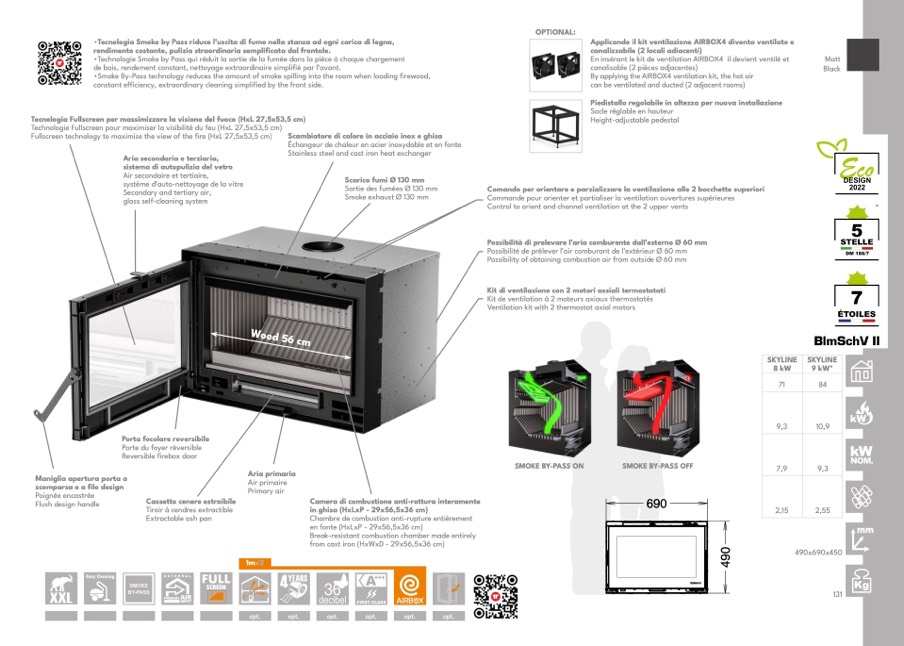

SKYLINE
8 kW
SKYLINE
9 kW*
71
84
LA 1:
9,3
10
10,9
7,9
9,3
2,15
4
0
2,55
4
9
0
•Tecnologia Smoke by Pass riduce l’uscita di fumo nella stanza ad ogni carica di legna,
rendimento costante, pulizia straordinaria sempli
ficata dal frontale.
•Technologie Smoke by Pass qui r
éduit la sortie de la fumée dans la pi
èce à chaque chargement
de bois, rendement constant, nettoyage extraordinaire simpli
fi
é par l’avant.
•Smoke By-Pass technology reduces the amount of smoke spilling into the room when loading firewood,
constant efficiency, extraordinary cleaning simplified by the front side.
Tecnologia Fullscreen per massimizzare la visione del fuoco (HxL 27,5x53,5 cm)
Technologie Fullscreen pour maximiser la visibilité du feu (HxL 27,5x53,5 cm)
Fullscreen technology to maximise the view of the fire (HxL 27,5x53,5 cm)
Scambiatore di calore in acciaio inox e ghisa
Échangeur de chaleur en acier inoxydable et en fonte
Stainless steel and cast iron heat exchanger
Aria secondaria e terziaria,
sistema di autopulizia del vetro
Air secondaire et tertiaire,
Scarico fumi Ø 130 mm
système d’auto-nettoyage de la vitre
Sortie des fum
ées Ø 130 mm
Secondary and tertiary air,
Smoke exhaust Ø 130 mm
glass self-cleaning system
OPTIONAL:
Applicando il kit ventilazione AIRBOX4 diventa ventilato e
canalizzabile (2 locali adiacenti)
En insérant le kit de ventilation AIRBOX4 il devient ventilé et
canalisable (2 pièces adjacentes)
By applying the AIRBOX4 ventilation kit, the hot air
can be ventilated and ducted (2 adjacent rooms)
Piedistallo regolabile in altezza per nuova installazione
Socle réglable en hauteur
Height-adjustable pedestal
Maniglia apertura porta a
scomparsa e a filo design
Poign
ée encastr
ée
Flush design handle
Cassetto cenere estraibile
Tiroir à cendres extractible
Extractable ash pan
Aria primaria
Air primaire
Primary air
Camera di combustione anti-rottura interamente
in ghisa (HxLxP - 29x56,5x36 cm)
Chambre de combustion anti-rupture entièrement
en fonte (HxLxP - 29x56,5x36 cm)
Break-resistant combustion chamber made entirely
from cast iron (HxWxD - 29x56,5x36 cm)
Porta focolare reversibile
Porte du foyer réversible
Reversible firebox door
SMOKE BY-PASS ON
VISTA ISOMETRICA - SCA
SMOKE BY-PASS OFF
690
1mx2
SCREEN
490x690x450
131
Wo
od
5
6
cm
opt.
opt.
opt.
opt.
opt.
opt.
Comando per orientare e parzializzare la ventilazione alle 2 bocchette superiori
Commande pour orienter et partialiser la ventilation ouvertures supérieures
Control to orient and channel ventilation at the 2 upper vents
Possibilit
à di prelevare l’aria comburente dall’esterno Ø 60 mm
Possibilité de pr
élever l’air comburant de l’ext
érieur Ø 60 mm
Possibility of obtaining combustion air from outside Ø 60 mm
Kit di ventilazione con 2 motori assiali termostatati
Kit de ventilation à 2 moteurs axiaux thermostatés
Ventilation kit with 2 thermostat axial motors
*
5
Matt
Black
4
0
