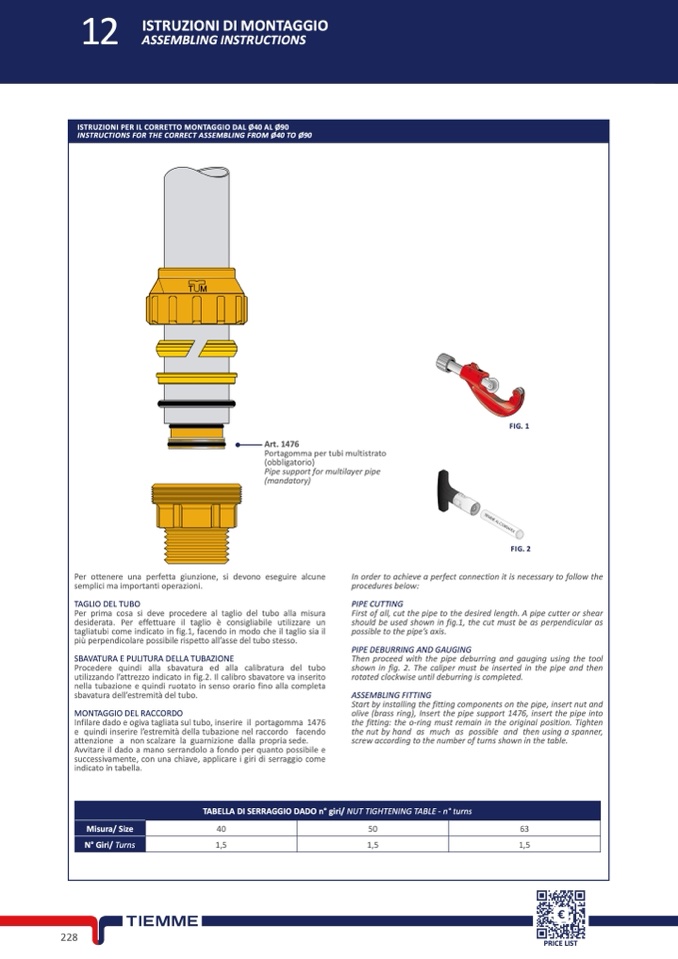

ISTRUZIONI DI MONTAGGIO

ASSEMBLING INSTRUCTION

S

ISTRUZIONI PER IL CORRETTO MONTAGGIO DAL Ø40 AL Ø9

0

INSTRUCTIONS FOR THE CORRECT ASSEMBLING FROM Ø40 TO Ø9

0

FIG. 1

Art. 1476

Portagomma per tubi multistrato

(obbligatorio)

Pipe support for multilayer pipe

(mandatory

)

FIG. 2

Per ottenere una perfetta giunzione, si devono eseguire alcune

semplici ma importanti operazioni.

TAGLIO DEL TUBO

Per prima cosa si deve procedere al taglio del tubo alla misura

desiderata. Per effettuare il taglio è consigliabile utilizzare un

tagliatubi come indicato in fig.1, facendo in modo che il taglio sia il

più perpendicolare possibile rispetto all’asse del tubo stesso

.

SBAVATURA E PULITURA DELLA TUBAZION

E

Procedere quindi alla sbavatura ed alla calibratura del tubo

utilizzando l’attrezzo indicato in fig.2. Il calibro sbavatore va inserito

nella tubazione e quindi ruotato in senso orario fino alla complet

a

sbavatura dell’estremità del tubo

.

MONTAGGIO DEL RACCORDO

Infilare dado e ogiva tagliata sul tubo, inserire il portagomma 1476

e quindi inserire l’estremità della tubazione nel raccordo facendo

attenzione a non scalzare la guarnizione dalla propria sede

.

Avvitare il dado a mano serrandolo a fondo per quanto possibile

e

successivamente, con una chiave, applicare i giri di serraggio com

e

indicato in tabella

.

In order to achieve a perfect connection it is necessary to follow the

procedures below

:

PIPE CUTTIN

G

First of all, cut the pipe to the desired length. A pipe cutter or shear

should be used shown in fig.1, the cut must be as perpendicular as

possible to the pipe’s axis

.

PIPE DEBURRING AND GAUGIN

G

Then proceed with the pipe deburring and gauging using the tool

shown in fig. 2. The caliper must be inserted in the pipe and the

n

rotated clockwise until deburring is completed.

ASSEMBLING FITTING

Start by installing the fitting components on the pipe, insert nut and

olive (brass ring), Insert the pipe support 1476, insert the pipe int

o

the fitting: the o-ring must remain in the original position. Tighte

n

the nut by hand as much as possible and then using a spanner

,

screw according to the number of turns shown in the table

.

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turn

s

Misura/ Size

40

50

6

3

N° Giri/ Turns

1,5

1,5

1,

5

22

8
