Features and Benefits

►

►

►

►

►

Certification

ANSI/NSF

®

-61-372

ASME A112.18.3M (*Select flow rates)

Options Available

100% factory tested drip tight operation.

Easy to insert into the application device.

Spring loaded plunger: operates in any position.

Constant flow on pressure range.

Combines check valve and flow regulator.

B

Part #

2AAVA026

2AAVA027

Color

gpm

Gray / Gray-Yellow

1.32

Gray / Beige - Light Blue

1.75

L/min

5.0

6.6

Name

Housing

Regulator

Plunger

Spring

O-ring seal

O-ring

Material

Acetal

Acetal/ EPDM

Acetal

Stainless steel AISI 301

EPDM

EPDM

The below shut-off handsprays can be equipped with

CV14FR flow regulating Check Valve

B00470

B00475

Technical Data

Medium:

Wetted surface area:

Clear water only

3223 mm

2

Short-term (5 minutes max.)

65

150

BOSSINI PORTATE D’ACQUA DOCCE – HANDSHOWERS FLOW RATES

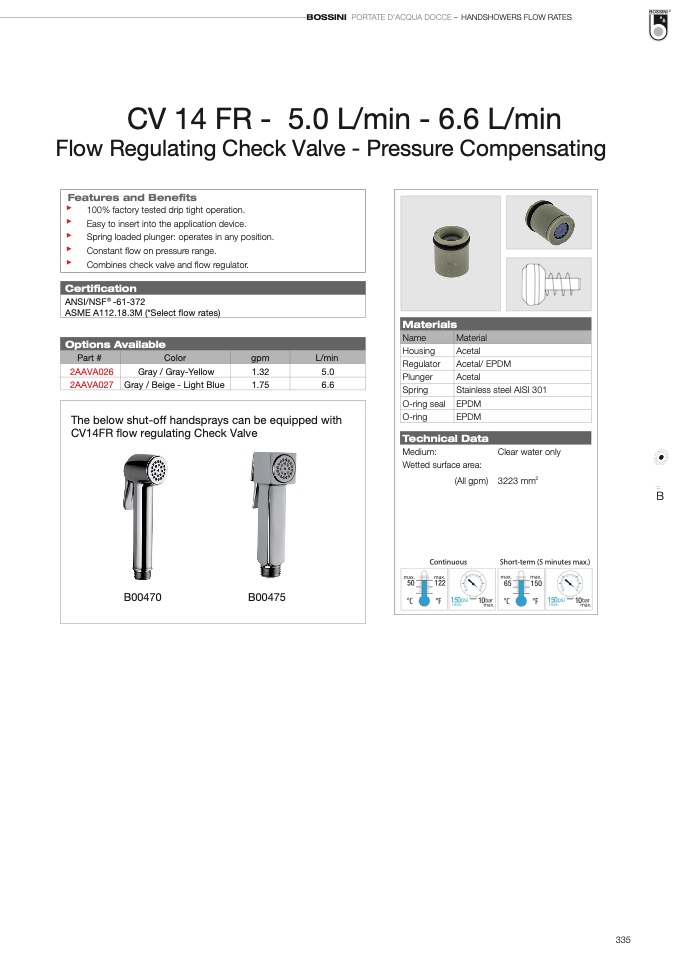

CV 14 FR - 5.0 L/min - 6.6 L/min

Flow Regulating Check Valve - Pressure Compensating

Materials

50

Continuous

122

(All gpm)

150

10

150

10

335
