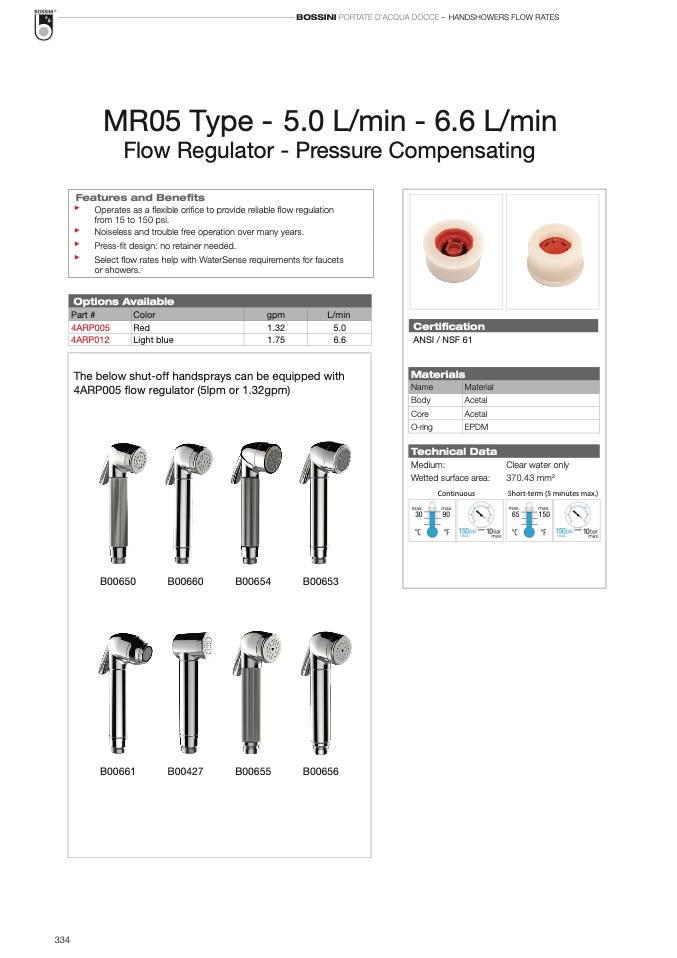

BOSSINI PORTATE D’ACQUA DOCCE – HANDSHOWERS FLOW RATES

MR05 Type - 5.0 L/min - 6.6 L/min

Flow Regulator - Pressure Compensating

Certification

ANSI / NSF 61

Technical Data

Medium:

Wetted surface area:

Continuous

30

90

150

10

Clear water only

370.43 mm

2

Short-term (5 minutes max.)

65

150

150

10

Materials

Name

Material

Body

Acetal

Core

Acetal

O-ring

EPDM

Features and Benefits

►

►

►

►

Operates as a flexible orifice to provide reliable flow regulation

from 15 to 150 psi.

Noiseless and trouble free operation over many years.

Press-fit design: no retainer needed.

Select flow rates help with WaterSense requirements for faucets

or showers.

Options Available

Part #

Color

gpm

L/min

4ARP005

Red

1.32

5.0

4ARP012

Light blue

1.75

6.6

The below shut-off handsprays can be equipped with

4ARP005 flow regulator (5lpm or 1.32gpm)

B00650

B00660

B00654

B00653

B00661

B00427

B00655

B00656

334
