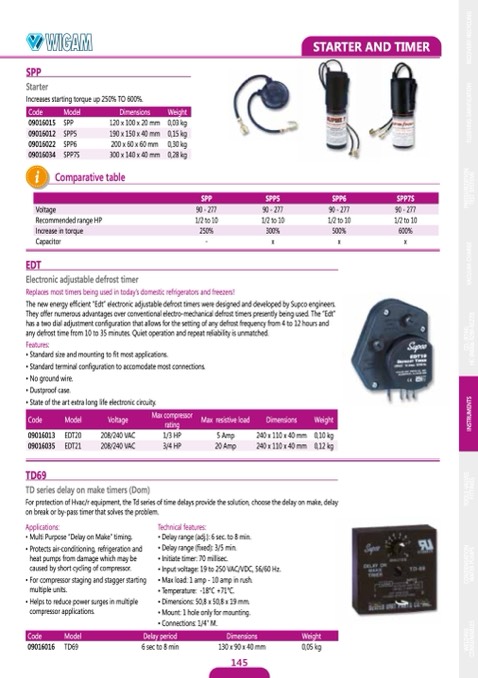

STARTER AND TIMER
SPP
Starter
Increases starting torque up 250% TO 600%.
i
EDT
Electronic adjustable defrost timer
Replaces most timers being used in today’s domestic refrigerators and freezers!
The new energy efficient “Edt” electronic adjustable defrost timers were designed and developed by Supco engineers.
They offer numerous advantages over conventional electro-mechanical defrost timers presently being used. The “Edt”
has a two dial adjustment configuration that allows for the setting of any defrost frequency from 4 to 12 hours and
any defrost time from 10 to 35 minutes. Quiet operation and repeat reliability is unmatched.
Features:
• Standard size and mounting to fit most applications.
• Standard terminal configuration to accomodate most connections.
• No ground wire.
• Dustproof case.
• State of the art extra long life electronic circuity.
TD69
TD series delay on make timers (Dom)
For protection of Hvac/r equipment, the Td series of time delays provide the solution, choose the delay on make, delay
on break or by-pass timer that solves the problem.
Code
Model
Dimensions
Weight
09016015
SPP
120 x 100 x 20 mm
0,03 kg
09016012
SPP5
190 x 150 x 40 mm
0,15 kg
09016022
SPP6
200 x 60 x 60 mm
0,30 kg
09016034
SPP7S
300 x 140 x 40 mm
0,28 kg
Comparative table
SPP
SPP5
SPP6
SPP7S
Voltage
90 - 277
90 - 277
90 - 277
90 - 277
Recommended range HP
1/2 to 10
1/2 to 10
1/2 to 10
1/2 to 10
Increase in torque
250%
300%
500%
600%
Capacitor
-
x
x
x
Code
Model
Voltage
Max compressor
rating
Max resistive load
Dimensions
Weight
09016013
EDT20
208/240 VAC
1/3 HP
5 Amp
240 x 110 x 40 mm
0,10 kg
09016035
EDT21
208/240 VAC
3/4 HP
20 Amp
240 x 110 x 40 mm
0,12 kg
Applications:
• Multi Purpose “Delay on Make” timing.
• Protects air-conditioning, refrigeration and
heat pumps from damage which may be
caused by short cycling of compressor.
• For compressor staging and stagger starting
multiple units.
• Helps to reduce power surges in multiple
compressor applications.
Technical features:
• Delay range (adj.): 6 sec. to 8 min.
• Delay range (fixed): 3/5 min.
• Initiate timer: 70 millisec.
• Input voltage: 19 to 250 VAC/VDC, 56/60 Hz.
• Max load: 1 amp - 10 amp in rush.
• Temperature: -18°C +71°C.
• Dimensions: 50,8 x 50,8 x 19 mm.
• Mount: 1 hole only for mounting.
• Connections: 1/4" M.
Code
Model
Delay period
Dimensions
Weight
09016016
TD69
6 sec to 8 min
130 x 90 x 40 mm
0,05 kg
145
