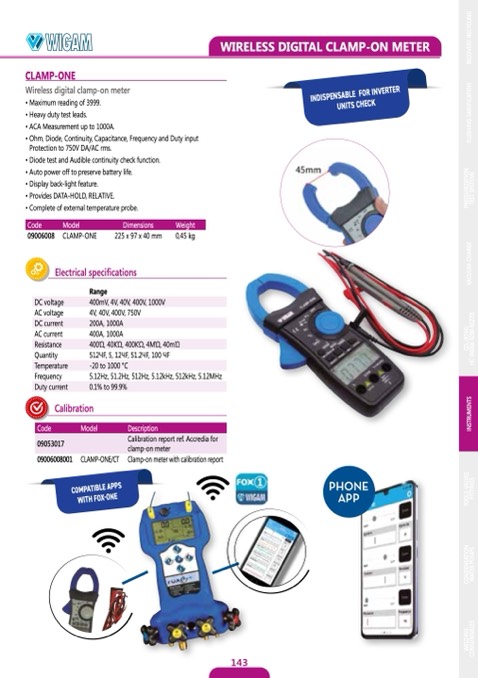

CLAMP-ONE
Wireless digital clamp-on meter
• Maximum reading of 3999.
• Heavy duty test leads.
• ACA Measurement up to 1000A.
• Ohm, Diode, Continuity, Capacitance, Frequency and Duty input
Protection to 750V DA/AC rms.
INDISPENSABLE FORINVERTER
UNITS CHECK
• Diode test and Audible continuity check function.
• Auto power off to preserve battery life.
• Display back-light feature.
• Provides DATA-HOLD, RELATIVE.
• Complete of external temperature probe.
Code
Model
Dimensions
Weight
09006008 CLAMP-ONE
225 x 97 x 40 mm
0,45 kg
Electrical specifications
DC voltage
AC voltage
DC current
AC current
Resistance
Quantity
Temperature
Frequency
Duty current
Range
400mV, 4V, 40V, 400V, 1000V
4V, 40V, 400V, 750V
200A, 1000A
400A, 1000A
400Ώ, 40KΏ, 400KΏ, 4MΏ, 40mΏ
512ЧF, 5, 12ЧF, 51.2ЧF, 100 ЧF
-20 to 1000 °C
5.12Hz, 51.2Hz, 512Hz, 5.12kHz, 512kHz, 5.12MHz
0.1% to 99.9%
Calibration
Code
Model
09053017
09006008001 CLAMP-ONE/CT
COMPATIBLE APPS
WITH FOX-ONE
Description
Calibration report ref. Accredia for
clamp-on meter
Clamp-on meter with calibration report
WIRELESS DIGITAL CLAMP-ON METER
