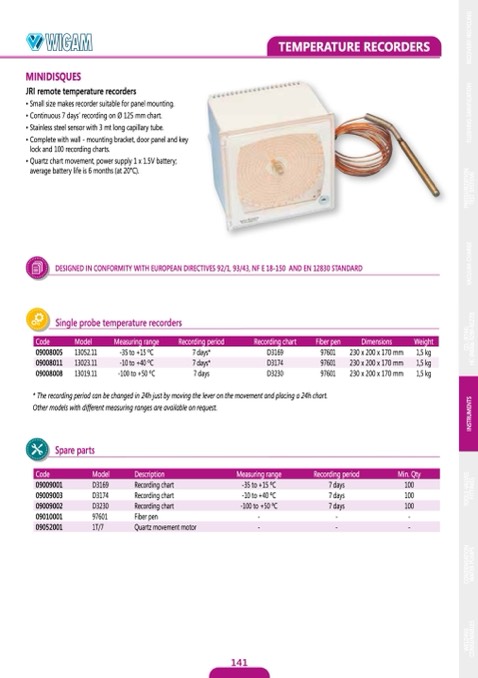

MINIDISQUES
JRI remote temperature recorders
• Small size makes recorder suitable for panel mounting.
• Continuous 7 days’ recording on Ø 125 mm chart.
• Stainless steel sensor with 3 mt long capillary tube.
• Complete with wall - mounting bracket, door panel and key
lock and 100 recording charts.
• Quartz chart movement, power supply 1 x 1.5V battery;
average battery life is 6 months (at 20°C).
DESIGNED IN CONFORMITY WITH EUROPEAN DIRECTIVES 92/1, 93/43, NF E 18-150 AND EN 12830 STANDARD
Single probe temperature recorders
* The recording period can be changed in 24h just by moving the lever on the movement and placing a 24h chart.
Other models with different measuring ranges are available on request.
Spare parts
TEMPERATURE RECORDERS
Code
Model
Measuring range
Recording period
Recording chart
Fiber pen
Dimensions
Weight
09008005
13052.11
-35 to +15 oC
7 days*
D3169
97601
230 x 200 x 170 mm
1,5 kg
09008011
13023.11
-10 to +40 oC
7 days*
D3174
97601
230 x 200 x 170 mm
1,5 kg
09008008
13019.11
-100 to +50 oC
7 days
D3230
97601
230 x 200 x 170 mm
1,5 kg
Code
Model
Description
Measuring range
Recording period
Min. Qty
09009001
D3169
Recording chart
-35 to +15 oC
7 days
100
09009003
D3174
Recording chart
-10 to +40 oC
7 days
100
09009002
D3230
Recording chart
-100 to +50 oC
7 days
100
09010001
97601
Fiber pen
-
-
-
09052001
1T/7
Quartz movement motor
-
-
-
141
