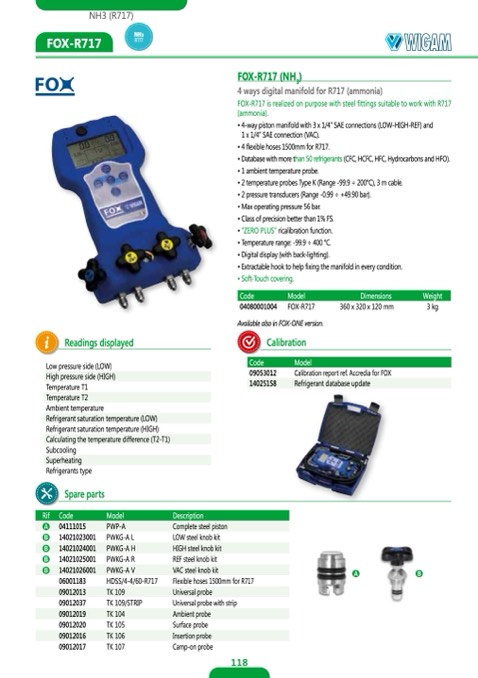

4 ways digital manifold for R717 (ammonia)

FOX-R717 is realized on purpose with steel fittings suitable to work with R717

(ammonia).

• 4-way piston manifold with 3 x 1/4” SAE connections (LOW-HIGH-REF) and

1 x 1/4” SAE connection (VAC).

• 4 flexible hoses 1500mm for R717.

• Database with more than 50 refrigerants (CFC, HCFC, HFC, Hydrocarbons and HFO).

• 1 ambient temperature probe.

• 2 temperature probes Type K (Range -99.9 ÷ 200°C), 3 m cable.

• 2 pressure transducers (Range -0.99 ÷ +49.90 bar).

• Max operating pressure 56 bar.

• Class of precision better than 1% FS.

• “ZERO PLUS” ricalibration function.

• Temperature range: -99.9 ÷ 400 °C.

• Digital display (with back-lighting).

• Extractable hook to help fixing the manifold in every condition.

• Soft-Touch covering.

Code

Model

Dimensions

Weight

04080001004

FOX-R717

360x320x120mm

3kg

i

Low pressure side (LOW)

High pressure side (HIGH)

Temperature T1

Temperature T2

Ambient temperature

Available also in FOX-ONE version.

Calibration

Readings displayed

Code

09053012

14025158

Model

Calibration report ref. Accredia for FOX

Refrigerant database update

Refrigerant saturation temperature (LOW)

Refrigerant saturation temperature (HIGH)

Calculating the temperature difference (T2-T1)

Subcooling

Superheating

Refrigerants type

Spare parts

Rif

Code

Model

Description

A

04111015

PWP-A

Complete steel piston

B

14021023001

PWKG-A L

LOW steel knob kit

B

14021024001

PWKG-A H

HIGH steel knob kit

B

14021025001

PWKG-A R

REF steel knob kit

B

14021026001

PWKG-A V

VAC steel knob kit

06001183

HDSS/4-4/60-R717

Flexible hoses 1500mm for R717

09012013

TK 109

Universal probe

09012037

TK 109/STRIP

Universal probe with strip

09012019

TK 104

Ambient probe

09012020

TK 105

Surface probe

09012016

TK 106

Insertion probe

09012017

TK 107

Camp-on probe

118

A
