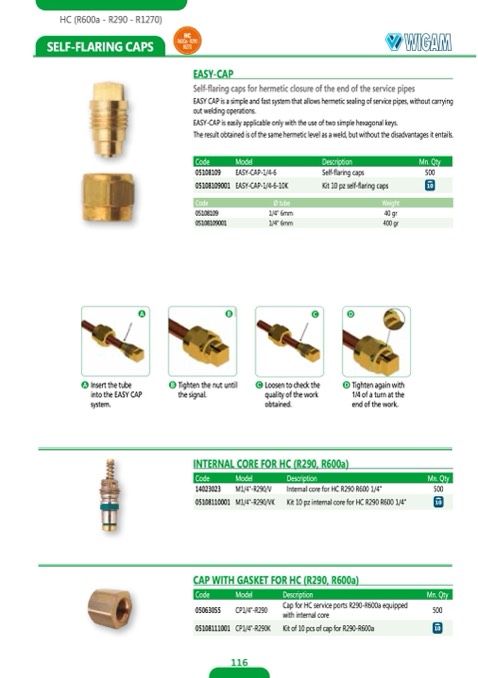

HC (R600a - R290 - R1270)

SELF-FLARING CAPS

HC

R600a-R290

R1270

EASY-CAP

Self-flaring caps for hermetic closure of the end of the service pipes

EASY CAP is a simple and fast system that allows hermetic sealing of service pipes, without carrying

out welding operations.

EASY-CAP is easily applicable only with the use of two simple hexagonal keys.

The result obtained is of the same hermetic level as a weld, but without the disadvantages it entails.

Code

05108109

05108109001

Code

14023023

05108110001

Code

05063055

05108111001

Model

EASY-CAP-1/4-6

EASY-CAP-1/4-6-10K

Model

M1/4"-R290/V

M1/4"-R290/VK

Model

CP1/4"-R290

CP1/4"-R290K

Description

Description

Self-flaring caps

Kit 10 pz self-flaring caps

Internal core for HC R290 R600 1/4”

Kit 10 pz internal core for HC R290 R600 1/4”

Description

Cap for HC service ports R290-R600a equipped

with internal core

Kit of 10 pcs of cap for R290-R600a

Mn.

500

1

Qty

Code

05108109

05108109001

Ø tube

1/4" 6mm

1/4" 6mm

Weight

40 gr

400 gr

0

A Insert the tube

into the EASY CAP

system.

B Tighten the nut until

the signal.

C Loosen to check the

quality of the work

obtained.

D Tighten again with

1/4 of a turn at the

end of the work.

A

B

C

D

INTERNAL CORE FOR HC (R290, R600a)

Mn. Qty

CAP WITH GASKET FOR HC (R290, R600a)

500

10

Mn. Qty

500

116

10
