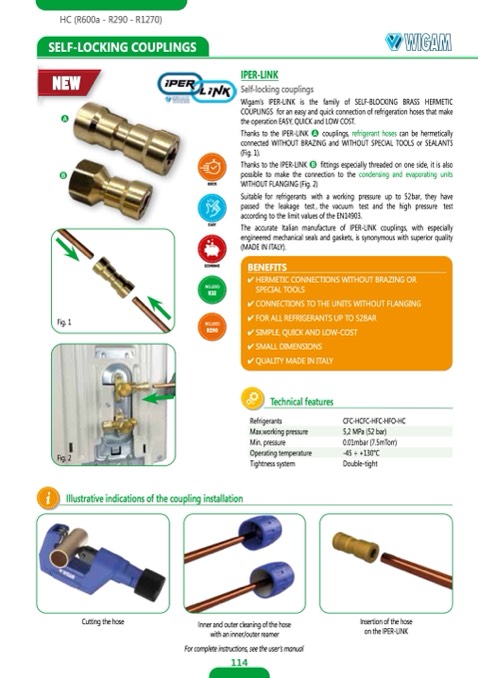

HC (R600a - R290 - R1270)

SELF-LOCKING COUPLINGS

A

B

IPER-LINK

Self-locking couplings

Wigam’s IPER-LINK is the family of SELF-BLOCKING BRASS HERMETIC

COUPLINGS foraneasyandquickconnectionofrefrigerationhosesthatmake

the operation EASY, QUICK and LOW COST.

Thanks to the IPER-LINK A couplings, refrigerant hoses can be hermetically

connected WITHOUT BRAZING and WITHOUT SPECIAL TOOLS or SEALANTS

(Fig. 1).

Thanks to the IPER-LINK B fittings especially threaded on one side, it is also

possible to make the connection to the condensing and evaporating units

WITHOUT FLANGING (Fig. 2)

Suitable for refrigerants with a working pressure up to 52bar, they have

passed the leakage test , the vacuum test and the high pressure test

according to the limit values of the EN14903.

The accurate Italian manufacture of IPER-LINK couplings, with especially

engineered mechanical seals and gaskets, is synonymous with superior quality

(MADE IN ITALY).

BENEFITS

✔

HERMETIC CONNECTIONS WITHOUT BRAZING OR

SPECIAL TOOLS

✔

CONNECTIONS TO THE UNITS WITHOUT FLANGING

✔

FOR ALL REFRIGERANTS UP TO 52BAR

✔

SIMPLE, QUICK AND LOW-COST

✔

SMALL DIMENSIONS

Fig. 1

QUICK

EASY

ECONOMIC

INCLUDED

R32

INCLUDED

R290

Max.working pressure

5,2 MPa (52 bar)

Operating temperature

-45 ÷ +130°C

Fig. 2

i

✔

QUALITY MADE IN ITALY

Technical features

Refrigerants

Min. pressure

Tightness system

CFC-HCFC-HFC-HFO-HC

0.01mbar (7.5mTorr)

Double-tight

Illustrative indications of the coupling installation

Cutting the hose

Inner and outer cleaning of the hose

with an inner/outer reamer

For complete instructions, see the user’s manual

Insertion of the hose

on the IPER-LINK

114
