HC (R600a - R290 - R1270)

DIGITAL MANIFOLD

HC

R600a-R290

R1270

ATEX II 3G Ex nA IIA T3 Gc

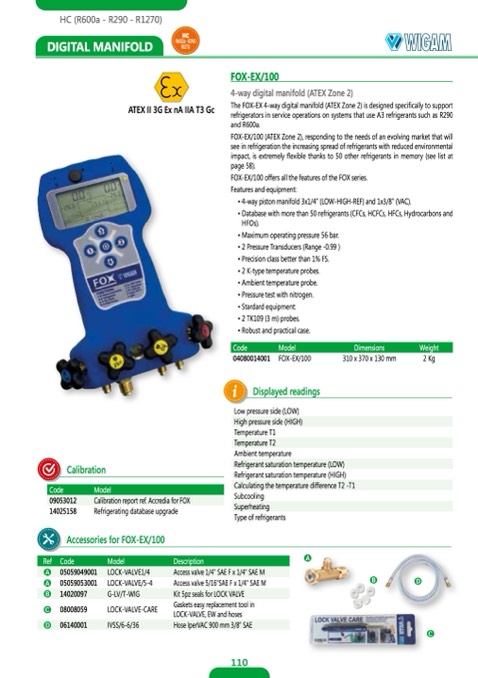

FOX-EX/100

4-way digital manifold (ATEX Zone 2)

The FOX-EX 4-way digital manifold (ATEX Zone 2) is designed specifically to support

refrigerators in service operations on systems that use A3 refrigerants such as R290

and R600a.

FOX-EX/100 (ATEX Zone 2), responding to the needs of an evolving market that will

see in refrigeration the increasing spread of refrigerants with reduced environmental

impact, is extremely flexible thanks to 50 other refrigerants in memory (see list at

page 58).

FOX-EX/100 offers all the features of the FOX series.

Features and equipment:

• 4-way piston manifold 3x1/4” (LOW-HIGH-REF) and 1x3/8” (VAC).

• Database with more than 50 refrigerants (CFCs, HCFCs, HFCs, Hydrocarbons and

HFOs).

• Maximum operating pressure 56 bar.

• 2 Pressure Transducers (Range -0.99 )

• Precision class better than 1% FS.

• 2 K-type temperature probes.

• Ambient temperature probe.

• Pressure test with nitrogen.

• Stardard equipment:

• 2 TK109 (3 m) probes.

• Robust and practical case.

i

Low pressure side (LOW)

High pressure side (HIGH)

Temperature T1

Temperature T2

Ambient temperature

Refrigerant saturation temperature (LOW)

Refrigerant saturation temperature (HIGH)

Calculating the temperature difference T2 -T1

Code

Model

Dimensions

Weight

04080014001

FOX-EX/100

310 x 370 x 130 mm

2Kg

Displayed readings

Calibration

Accessories for FOX-EX/100

Subcooling

Superheating

Type of refrigerants

Code

Model

09053012

Calibration report ref. Accredia for FOX

14025158

Refrigerating database upgrade

A

D

Ref

Code

Model

Description

A

05059049001

LOCK-VALVE1/4

Access valve 1/4" SAE F x 1/4" SAE M

A

05059053001

LOCK-VALVE/5-4

Access valve 5/16"SAE F x 1/4" SAE M

B

14020097

G-LV/T-WIG

Kit 5pz seals for LOCK VALVE

C

08008059

LOCK-VALVE-CARE

Gaskets easy replacement tool in

LOCK-VALVE, EW and hoses

D

06140001

IVSS/6-6/36

Hose IperVAC 900 mm 3/8” SAE

B

110

C
