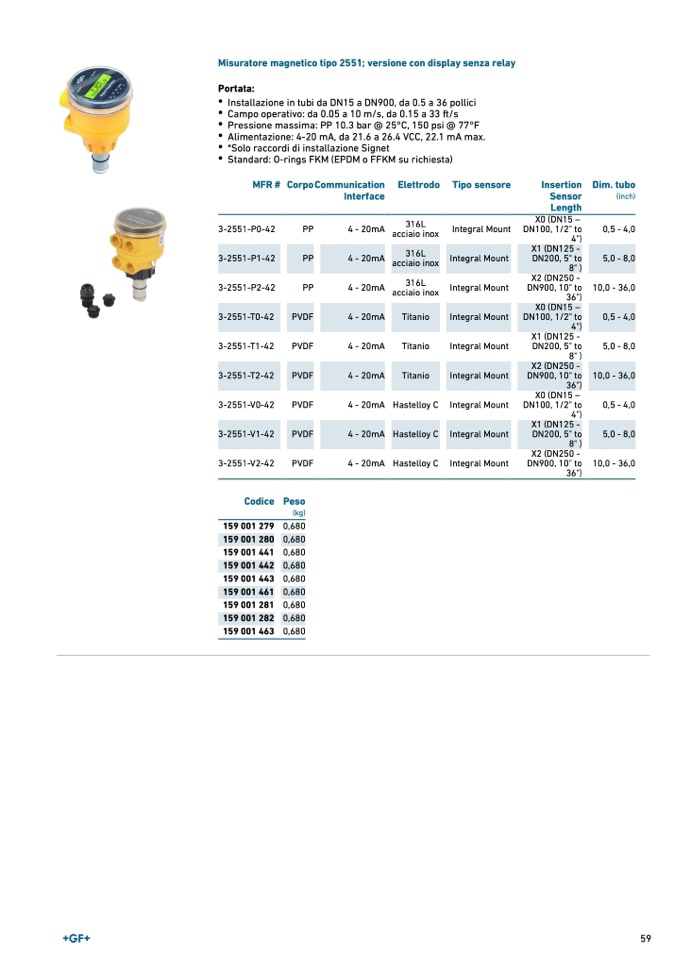

Misuratore magnetico tipo 2551; versione con display senza relay
Portata:
• Installazione in tubi da DN15 a DN900, da 0.5 a 36 pollic
i
• Campo operativo: da 0.05 a 10 m/s, da 0.15 a 33 ft/s
• Pressione massima: PP 10.3 bar @ 25°C, 150 psi @ 77°
F
• Alimentazione: 4-20 mA, da 21.6 a 26.4 VCC, 22.1 mA max.
• *Solo raccordi di installazione Signet
• Standard: O-rings FKM (EPDM o FFKM su richiesta)
MFR # CorpoCommunicatio
n
Interface
Elettrodo Tipo sensore
Insertio
n
Sensor
Length
Dim. tub
o
(inch)
3-2551-P0-42
PP
4 - 20mA
316
L
acciaio inox Integral Moun
t
X0 (DN15 –
DN100, 1/2" t
o
4"
)
0,5 - 4,0
3-2551-P1-42
PP
4 - 20mA
316
L
acciaio inox Integral Moun
t
X1 (DN125
-
DN200, 5" to
8"
)
5,0 - 8,0
3-2551-P2-42
PP
4 - 20mA
316
L
acciaio inox Integral Moun
t
X2 (DN250
-
DN900, 10" t
o
36")
10,0 - 36,
0
3-2551-T0-42
PVDF
4 - 20mA
Titanio
Integral Mount
X0 (DN15 –
DN100, 1/2" t
o
4"
)
0,5 - 4,0
3-2551-T1-42
PVDF
4 - 20mA
Titanio
Integral Mount
X1 (DN125
-
DN200, 5" to
8"
)
5,0 - 8,0
3-2551-T2-42
PVDF
4 - 20mA
Titanio
Integral Mount
X2 (DN250
-
DN900, 10" t
o
36")
10,0 - 36,
0
3-2551-V0-42
PVDF
4 - 20mA Hastelloy C Integral Mount
X0 (DN15 –
DN100, 1/2" t
o
4"
)
0,5 - 4,0
3-2551-V1-42
PVDF
4 - 20mA Hastelloy C Integral Mount
X1 (DN125
-
DN200, 5" to
8"
)
5,0 - 8,0
3-2551-V2-42
PVDF
4 - 20mA Hastelloy C Integral Mount
X2 (DN250
-
DN900, 10" t
o
36")
10,0 - 36,
0
Codice Peso
(kg)
159 001 279 0,680
159 001 280 0,680
159 001 441 0,680
159 001 442 0,680
159 001 443 0,680
159 001 461 0,680
159 001 281 0,680
159 001 282 0,680
159 001 463 0,680
59
