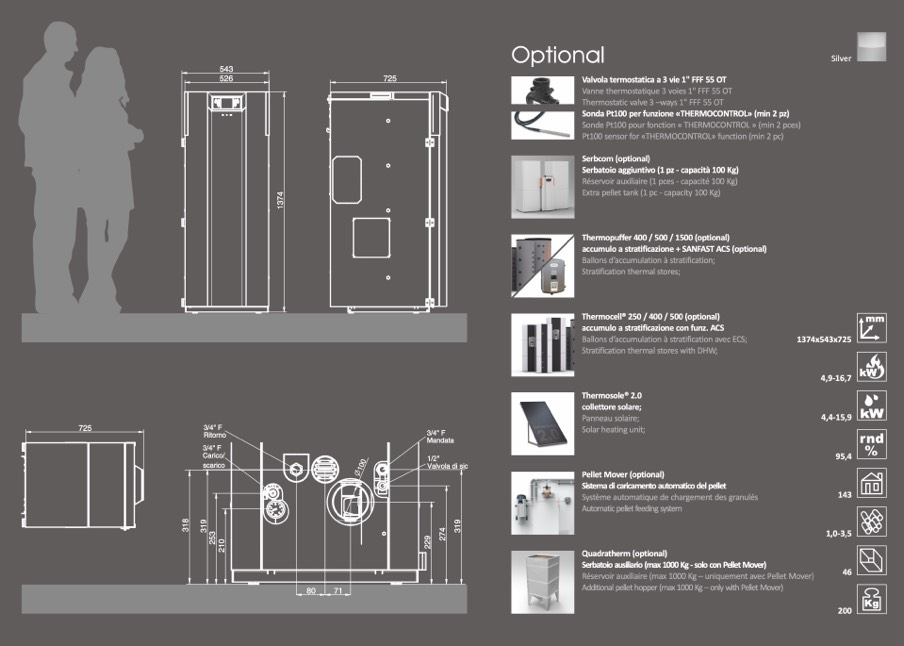

725

3/4" F

Ritorno

3/4" F

Carico/

scarico

3/4" F

Mandata

1/2"

Valvola di sic

543

725

Optional

Valvola termostatica a 3 vie 1" FFF 55 OT

Vanne thermostatique 3 voies 1" FFF 55 OT

Thermostatic valve 3 –ways 1" FFF 55 OT

Sonda Pt100 per funzione «THERMOCONTROL» (min 2 pz)

Sonde Pt100 pour fonction « THERMOCONTROL » (min 2 pces)

Pt100 sensor for «THERMOCONTROL» function (min 2 pc)

Serbcom (optional)

Serbatoio aggiuntivo (1 pz - capacit

à 100 Kg)

Réservoir auxiliaire (1 pces - capacité 100 Kg)

Extra pellet tank (1 pc - capacity 100 Kg)

Thermopuffer 400 / 500 / 1500 (optional)

accumulo a stratificazione + SANFAST ACS (optional)

Ballons d’accumulation

à stratification;

Stratification thermal stores;

Thermocell® 250 / 400 / 500 (optional)

accumulo a stratificazione con funz. ACS

Ballons d’accumulation à stratification avec ECS;

Stratification thermal stores with DHW;

Thermosole® 2.0

collettore solare;

Panneau solaire;

Solar heating unit;

Pellet Mover (optional)

Sistema di caricamento automatico del pellet

Syst

ème automatique de chargement des granulés

Automatic pellet feeding system

Silver

Quadratherm (optional)

Serbatoio ausiliario (max 1000 Kg - solo con Pellet Mover)

Réservoir auxiliaire (max 1000 Kg – uniquement avec Pellet Mover)

Additional pellet hopper (max 1000 Kg – only with Pellet Mover)

mm

4,9-16,7

kW

1374x543x725

4,4-15,9

95,4

143

1,0-3,5

46

kW

200

Kg

526

O

1

0

0

3

1

8

3

1

9

1

3

7

4

3

1

9

2

5

3

2

1

0

2

7

4

2

2

9

71

80
