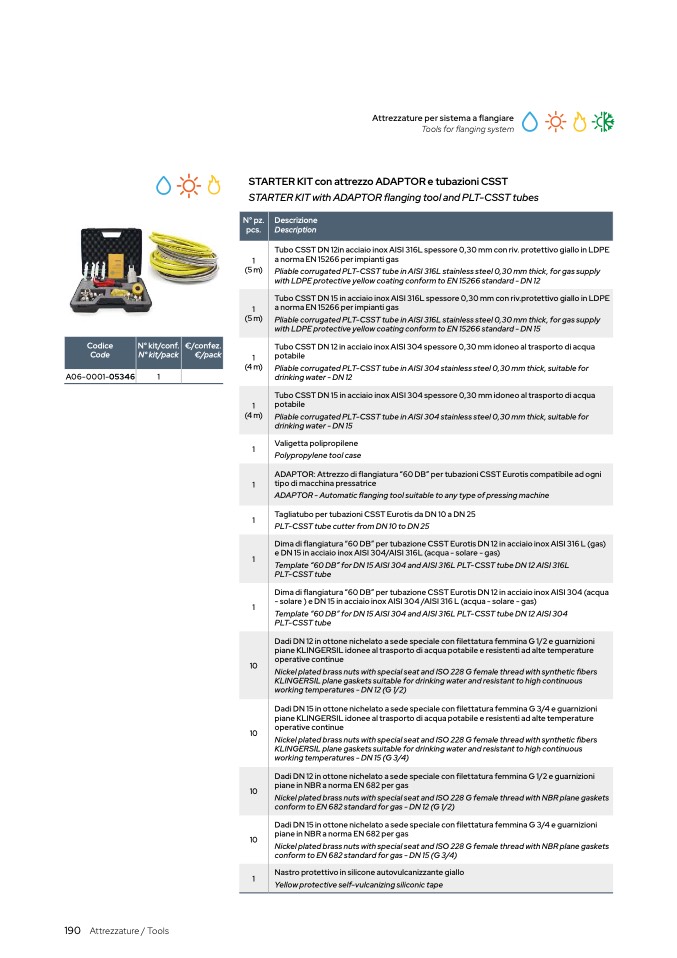

Attrezzature per sistema a flangiare

Tools for

flanging syste

m

Codic

e

Code

N° kit/conf

.

N° kit/pack

A06-0001-05346

1

€/confez.

€/pack

N° pz.

pcs

.

1

(5 m)

1

(5 m)

1

(4 m

)

1

(4 m

)

1

1

1

STARTER KIT con attrezzo ADAPTOR e tubazioni CSS

T

STARTER KIT with ADAPTOR flanging tool and PLT-CSST tube

s

Descrizione

Description

Tubo CSST DN 12in acciaio inox AISI 316L spessore 0,30 mm con riv. protettivo giallo in LDP

E

a norma EN 15266 per impianti gas

Pliable corrugated PLT-CSST tube in AISI 316L stainless steel 0,30 mm thick, for gas suppl

y

with LDPE protective yellow coating conform to EN 15266 standard - DN 12

Tubo CSST DN 15 in acciaio inox AISI 316L spessore 0,30 mm con riv.protettivo giallo in LDPE

a norma EN 15266 per impianti gas

Pliable corrugated PLT-CSST tube in AISI 316L stainless steel 0,30 mm thick, for gas suppl

y

with LDPE protective yellow coating conform to EN 15266 standard - DN 15

Tubo CSST DN 12 in acciaio inox AISI 304 spessore 0,30 mm idoneo al trasporto di acqu

a

potabil

e

Pliable corrugated PLT-CSST tube in AISI 304 stainless steel 0,30 mm thick, suitable fo

r

drinking water - DN 12

Tubo CSST DN 15 in acciaio inox AISI 304 spessore 0,30 mm idoneo al trasporto di acqu

a

potabil

e

Pliable corrugated PLT-CSST tube in AISI 304 stainless steel 0,30 mm thick, suitable fo

r

drinking water - DN 15

1 Valigetta polipropilen

e

Polypropylene tool case

ADAPTOR: Attrezzo di

flangiatura “60 DB” per tubazioni CSST Eurotis compatibile ad ogni

tipo di macchina pressatrice

ADAPTOR - Automatic

flanging tool suitable to any type of pressing machine

1 Tagliatubo per tubazioni CSST Eurotis da DN 10 a DN 2

5

PLT-CSST tube cutter from DN 10 to DN 2

5

Dima di

flangiatura “60 DB” per tubazione CSST Eurotis DN 12 in acciaio inox AISI 316 L (gas)

e DN 15 in acciaio inox AISI 304/AISI 316L (acqua - solare - gas)

Template “60 DB” for DN 15 AISI 304 and AISI 316L PLT-CSST tube DN 12 AISI 316L

PLT-CSST tube

Dima di

flangiatura “60 DB” per tubazione CSST Eurotis DN 12 in acciaio inox AISI 304 (acqua

- solare ) e DN 15 in acciaio inox AISI 304 /AISI 316 L (acqua - solare - gas)

Template “60 DB” for DN 15 AISI 304 and AISI 316L PLT-CSST tube DN 12 AISI 30

4

PLT-CSST tube

Dadi DN 12 in ottone nichelato a sede speciale con

filettatura femmina G 1/2 e guarnizion

i

piane KLINGERSIL idonee al trasporto di acqua potabile e resistenti ad alte temperatur

e

operative continu

e

Nickel plated brass nuts with special seat and ISO 228 G female thread with synthetic fibers

KLINGERSIL plane gaskets suitable for drinking water and resistant to high continuou

s

working temperatures - DN 12 (G 1/2

)

Dadi DN 15 in ottone nichelato a sede speciale con filettatura femmina G 3/4 e guarnizion

i

piane KLINGERSIL idonee al trasporto di acqua potabile e resistenti ad alte temperatur

e

operative continu

e

Nickel plated brass nuts with special seat and ISO 228 G female thread with synthetic fibers

KLINGERSIL plane gaskets suitable for drinking water and resistant to high continuou

s

working temperatures - DN 15 (G 3/4)

Dadi DN 12 in ottone nichelato a sede speciale con

filettatura femmina G 1/2 e guarnizion

i

piane in NBR a norma EN 682 per gas

Nickel plated brass nuts with special seat and ISO 228 G female thread with NBR plane gasket

s

conform to EN 682 standard for gas - DN 12 (G 1/2

)

Dadi DN 15 in ottone nichelato a sede speciale con filettatura femmina G 3/4 e guarnizion

i

piane in NBR a norma EN 682 per gas

Nickel plated brass nuts with special seat and ISO 228 G female thread with NBR plane gasket

s

conform to EN 682 standard for gas - DN 15 (G 3/4

)

1 Nastro protettivo in silicone autovulcanizzante giall

o

Yellow protective self-vulcanizing siliconic tap

e

10

10

10

10

190 Attrezzature / Tools
