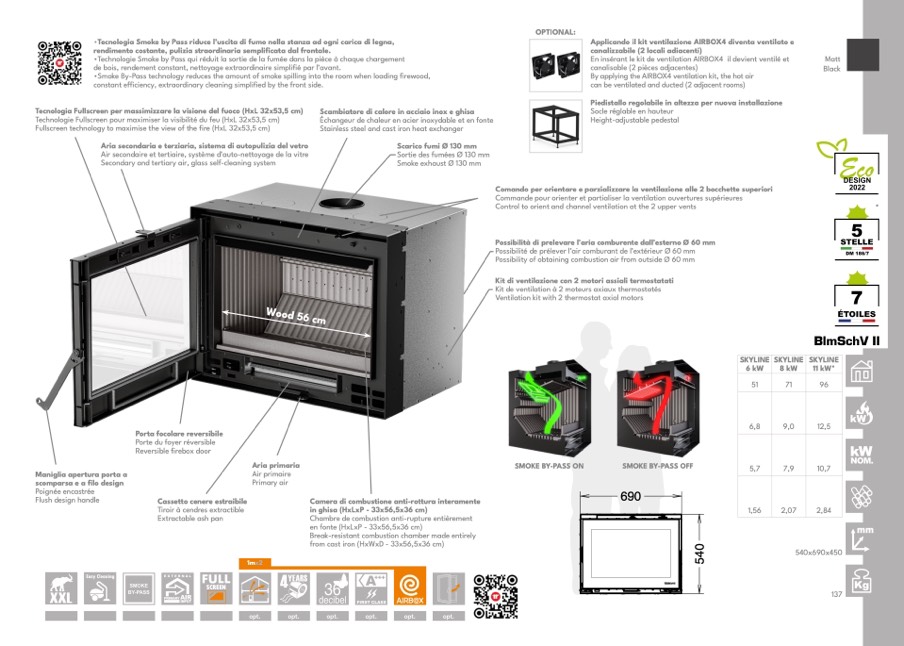

SKYLINE
LA 1
6 kW
SKYLINE
:10
8 kW
SKYLINE
11 kW*
51
71
96
6,8
9,0
12,5
5,7
7,9
10,7
1,56
450
2,07
2,84
5
4
0
•Tecnologia Smoke by Pass riduce l’uscita di fumo nella stanza ad ogni carica di legna,
rendimento costante, pulizia straordinaria sempli
ficata dal frontale.
•Technologie Smoke by Pass qui r
éduit la sortie de la fumée dans la pi
èce à chaque chargement
de bois, rendement constant, nettoyage extraordinaire simpli
fi
é par l’avant.
•Smoke By-Pass technology reduces the amount of smoke spilling into the room when loading firewood,
constant efficiency, extraordinary cleaning simplified by the front side.
Tecnologia Fullscreen per massimizzare la visione del fuoco (HxL 32x53,5 cm)
Scambiatore di calore in acciaio inox e ghisa
Technologie Fullscreen pour maximiser la visibilit
é du feu (HxL 32x53,5 cm)
Échangeur de chaleur en acier inoxydable et en fonte
Fullscreen technology to maximise the view of the
fire (HxL 32x53,5 cm)
Stainless steel and cast iron heat exchanger
OPTIONAL:
Applicando il kit ventilazione AIRBOX4 diventa ventilato e
canalizzabile (2 locali adiacenti)
En insérant le kit de ventilation AIRBOX4 il devient ventilé et
Matt
canalisable (2 pièces adjacentes)
Black
By applying the AIRBOX4 ventilation kit, the hot air
can be ventilated and ducted (2 adjacent rooms)
Piedistallo regolabile in altezza per nuova installazione
Socle réglable en hauteur
Height-adjustable pedestal
Maniglia apertura porta a
scomparsa e a filo design
Poign
ée encastrée
Flush design handle
Porta focolare reversibile
Porte du foyer réversible
Reversible firebox door
Cassetto cenere estraibile
Tiroir à cendres extractible
Extractable ash pan
Aria primaria
Air primaire
Primary air
SMOKE BY-PASS ON
SMOKE BY-PASS OFF
690
Aria secondaria e terziaria, sistema di autopulizia del vetro
Air secondaire et tertiaire, syst
ème d’auto-nettoyage de la vitre
Secondary and tertiary air, glass self-cleaning system
Scarico fumi Ø 130 mm
Sortie des fum
ées Ø 130 mm
Smoke exhaust Ø 130 mm
1mx2
SCREEN
Wo
od
5
6
cm
opt.
opt.
opt.
opt.
opt.
opt.
Camera di combustione anti-rottura interamente
in ghisa (HxLxP - 33x56,5x36 cm)
Chambre de combustion anti-rupture entièrement
en fonte (HxLxP - 33x56,5x36 cm)
Break-resistant combustion chamber made entirely
from cast iron (HxWxD - 33x56,5x36 cm)
540x690x450
137
Comando per orientare e parzializzare la ventilazione alle 2 bocchette superiori
Commande pour orienter et partialiser la ventilation ouvertures supérieures
Control to orient and channel ventilation at the 2 upper vents
Possibilit
à di prelevare l’aria comburente dall’esterno Ø 60 mm
Possibilité de pr
élever l’air comburant de l’ext
érieur Ø 60 mm
Possibility of obtaining combustion air from outside Ø 60 mm
Kit di ventilazione con 2 motori assiali termostatati
Kit de ventilation à 2 moteurs axiaux thermostat
és
Ventilation kit with 2 thermostat axial motors
VISTA ISOMETRICA - SCA
*
4
0
