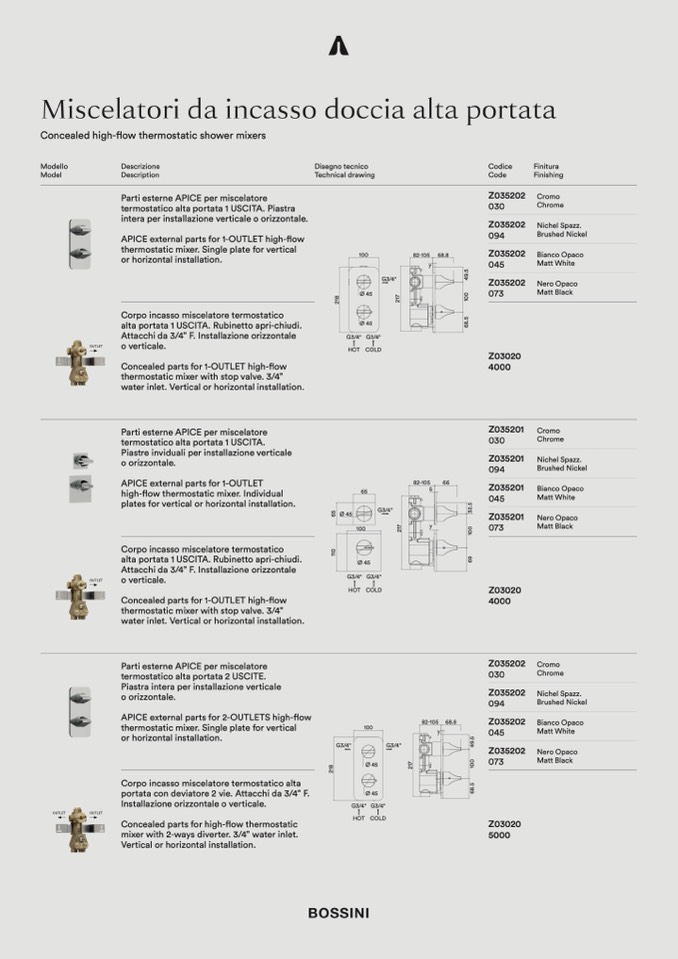

Miscelatori da incasso doccia alta portata

Concealed high-flow thermostatic shower mixers

Modello

Model

Descrizione

Description

Parti esterne APICE per miscelatore

termostatico alta portata 1 USCITA. Piastra

intera per installazione verticale o orizzontale.

APICE external parts for 1-OUTLET high-flow

thermostatic mixer. Single plate for vertical

or horizontal installation.

Corpo incasso miscelatore termostatico

alta portata 1 USCITA. Rubinetto apri-chiudi.

Attacchi da 3/4” F. Installazione orizzontale

o verticale.

Concealed parts for 1-OUTLET high-flow

thermostatic mixer with stop valve. 3/4”

water inlet. Vertical or horizontal installation.

Parti esterne APICE per miscelatore

termostatico alta portata 1 USCITA.

Piastre inviduali per installazione verticale

o orizzontale.

APICE external parts for 1-OUTLET

high-flow thermostatic mixer. Individual

plates for vertical or horizontal installation.

Corpo incasso miscelatore termostatico

alta portata 1 USCITA. Rubinetto apri-chiudi.

Attacchi da 3/4” F. Installazione orizzontale

o verticale.

Concealed parts for 1-OUTLET high-flow

thermostatic mixer with stop valve. 3/4”

water inlet. Vertical or horizontal installation.

Parti esterne APICE per miscelatore

termostatico alta portata 2 USCITE.

Piastra intera per installazione verticale

o orizzontale.

APICE external parts for 2-OUTLETS high-flow

thermostatic mixer. Single plate for vertical

or horizontal installation.

Corpo incasso miscelatore termostatico alta

portata con deviatore 2 vie. Attacchi da 3/4” F.

Installazione orizzontale o verticale.

Concealed parts for high-flow thermostatic

mixer with 2-ways diverter. 3/4” water inlet.

Vertical or horizontal installation.

Disegno tecnico

Technical drawing

100

Ø 45

Ø 45

G3/4" G3/4"

HOT COLD

65

100

Codice

Finitura

Code

Finishing

Z035202 Cromo

030

Chrome

Z035202 Nichel Spazz.

OUTLET

OUTLET

073

Z03020

5000

OUTLET

OUTLET

Ø 45

G3/4" G3/4"

HOT COLD

Ø 45

G3/4"

82-105

5

66

7

G3/4"

G3/4"

100

Ø 45

Ø 45

G3/4" G3/4"

HOT COLD

82-105 68.8

7

G3/4"

82-105 68.8

7

Z035202 Bianco Opaco

045

Matt White

Z035202 Nero Opaco

073

Matt Black

Z03020

4000

Z035201 Cromo

030

Chrome

Z035201 Nichel Spazz.

094

Brushed Nickel

Z035201 Bianco Opaco

045

Matt White

Z035201 Nero Opaco

073

Matt Black

Z03020

4000

Z035202 Cromo

030

Chrome

Z035202 Nichel Spazz.

094

Brushed Nickel

Z035202 Bianco Opaco

045

Matt White

Z035202 Nero Opaco

Matt Black

094

Brushed Nickel
