(kW)
3 - 3,5 - 4,5 - 5 - 6
7,5 - 9 - 12 - 18 - 2
4
(cm)
H 31,5 - 42,5x16 (from 3 to 6 kW)
H 45 - 47,5x18,5 (from 7,5 to 12 kW)
H 46 - 51x18,5 (18 - 24 kW
)

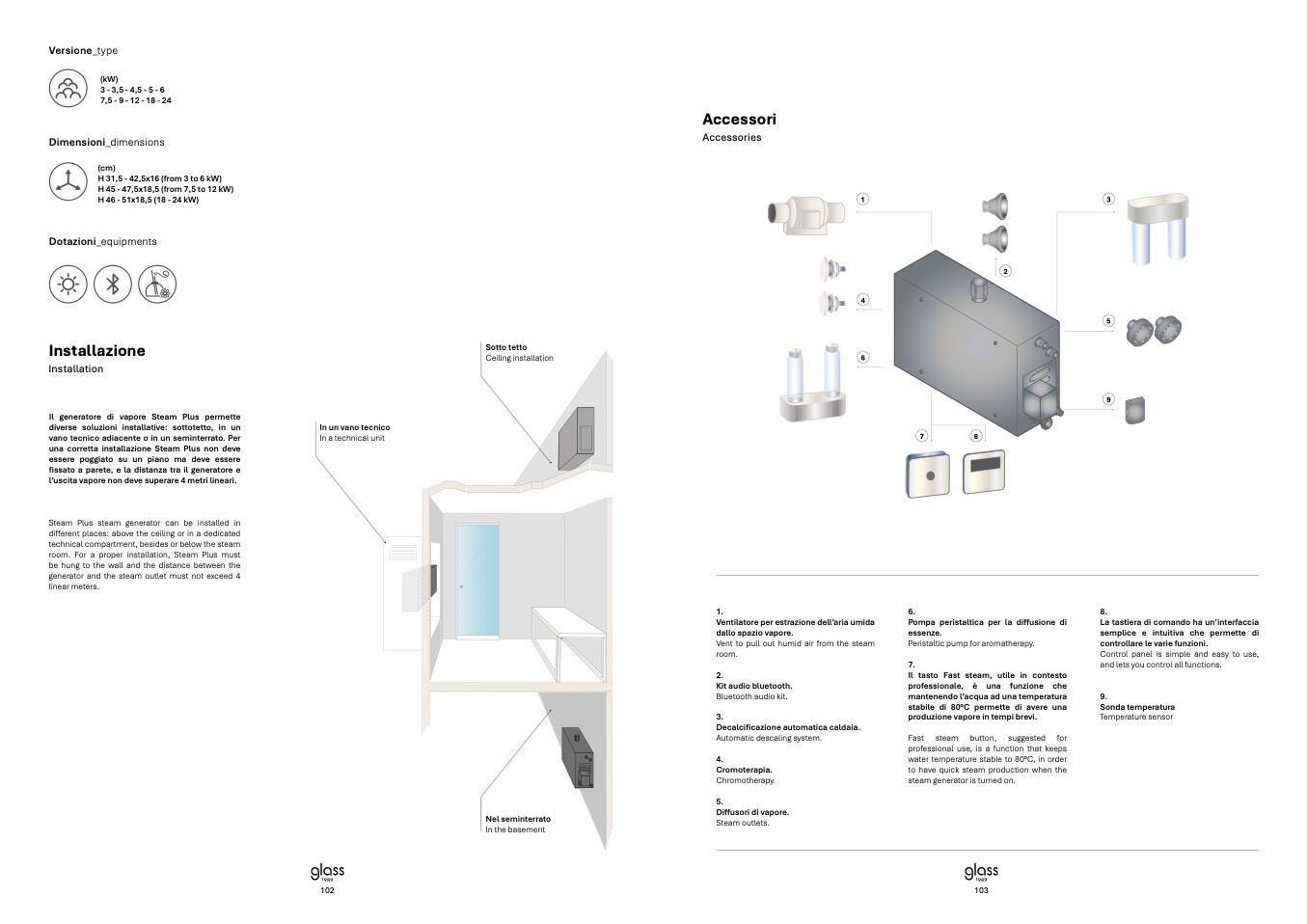

Il generatore di vapore Steam Plus permette
diverse soluzioni installative: sottotetto, in u
n
vano tecnico adiacente o in un seminterrato. Pe
r
una corretta installazione Steam Plus non dev
e
essere poggiato su un piano ma deve esser
e
fissato a parete, e la distanza tra il generatore
e
l’uscita vapore non deve superare 4 metri lineari.
Steam Plus steam generator can be installed i
n
different places: above the ceiling or in a dedicated
technical compartment, besides or below the steam
room. For a proper installation, Steam Plus mus
t
be hung to the wall and the distance between the
generator and the steam outlet must not exceed
4
linear meters.
In un vano tecnico
In a technical unit
102
Sotto tett
o
Ceiling installation
Nel seminterrato
In the basemen
t
1
4
6
1.
Ventilatore per estrazione dell’aria umida
dallo spazio vapore
.
Vent to pull out humid air from the steam
room.
2.
Kit audio bluetooth
.
Bluetooth audio kit.
3.
Decalcificazione automatica caldaia.
Automatic descaling system.
4.
Cromoterapia.
Chromotherapy
.
5.
Diffusori di vapore.
Steam outlets.
2
7
8
6.
Pompa peristaltica per la diffusione di
essenze.
Peristaltic pump for aromatherapy.
7.
Il tasto Fast steam, utile in contesto
professionale, è una funzione che
mantenendo l’acqua ad una temperatura
stabile di 80°C permette di avere una
produzione vapore in tempi brevi.
Fast steam button, suggested for
professional use, is a function that keeps
water temperature stable to 80°C, in order
to have quick steam production when the
steam generator is turned on.
10
3
3
5
9
8
.
La tastiera di comando ha un’interfacci
a
semplice e intuitiva che permette d
i
controllare le varie funzioni
.
Control panel is simple and easy to use,
and lets you control all functions.
9
.
Sonda temperatur
a
Temperature sensor
