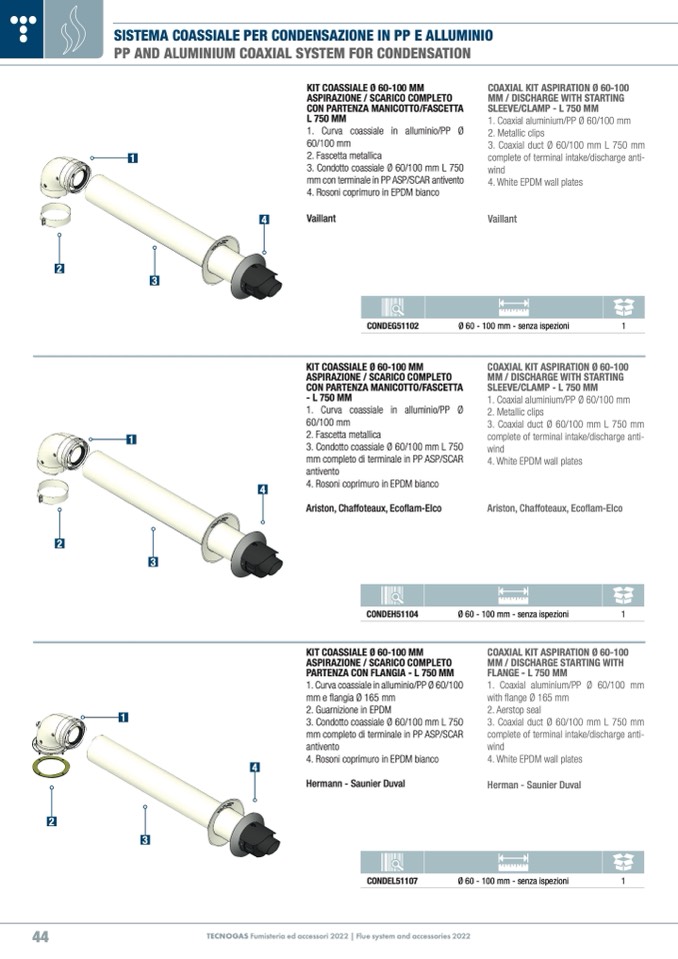

SISTEMA COASSIALE PER CONDENSAZIONE IN PP E ALLUMINIO

PP AND ALUMINIUM COAXIAL SYSTEM FOR CONDENSATION

1

COAXIAL KIT ASPIRATION Ø 60-100

MM / DISCHARGE WITH STARTING

SLEEVE/CLAMP - L 750 MM

1. Coaxial aluminium/PP Ø 60/100 mm

2. Metallic clips

3. Coaxial duct Ø 60/100 mm L 750 mm

complete of terminal intake/discharge anti-

wind

4. White EPDM wall plates

Vaillant

Ø 60 - 100 mm - senza ispezioni

1

KIT COASSIALE Ø 60-100 MM

ASPIRAZIONE / SCARICO COMPLETO

CON PARTENZA MANICOTTO/FASCETTA

L 750 MM

1. Curva coassiale in alluminio/PP Ø

60/100 mm

2. Fascetta metallica

3. Condotto coassiale Ø 60/100 mm L 750

mm con terminale in PP ASP/SCAR antivento

4. Rosoni coprimuro in EPDM bianco

2

3

4

Vaillant

CONDEG51102

1

3

4

COAXIAL KIT ASPIRATION Ø 60-100

MM / DISCHARGE WITH STARTING

SLEEVE/CLAMP - L 750 MM

1. Coaxial aluminium/PP Ø 60/100 mm

2. Metallic clips

3. Coaxial duct Ø 60/100 mm L 750 mm

complete of terminal intake/discharge anti-

wind

4. White EPDM wall plates

Ariston, Chaffoteaux, Ecoflam-Elco

Ø 60 - 100 mm - senza ispezioni

1

KIT COASSIALE Ø 60-100 MM

ASPIRAZIONE / SCARICO COMPLETO

CON PARTENZA MANICOTTO/FASCETTA

- L 750 MM

1. Curva coassiale in alluminio/PP Ø

60/100 mm

2. Fascetta metallica

3. Condotto coassiale Ø 60/100 mm L 750

mm completo di terminale in PP ASP/SCAR

antivento

4. Rosoni coprimuro in EPDM bianco

Ariston, Chaffoteaux, Ecoflam-Elco

CONDEH51104

2

2

1

3

4

KIT COASSIALE Ø 60-100 MM

ASPIRAZIONE / SCARICO COMPLETO

PARTENZA CON FLANGIA - L 750 MM

1. Curva coassiale in alluminio/PP Ø 60/100

mm e flangia Ø 165 mm

2. Guarnizione in EPDM

3. Condotto coassiale Ø 60/100 mm L 750

mm completo di terminale in PP ASP/SCAR

antivento

4. Rosoni coprimuro in EPDM bianco

Hermann - Saunier Duval

COAXIAL KIT ASPIRATION Ø 60-100

MM / DISCHARGE STARTING WITH

FLANGE - L 750 MM

1. Coaxial aluminium/PP Ø 60/100 mm

with flange Ø 165 mm

2. Aerstop seal

3. Coaxial duct Ø 60/100 mm L 750 mm

complete of terminal intake/discharge anti-

wind

4. White EPDM wall plates

Herman - Saunier Duval

CONDEL51107

Ø 60 - 100 mm - senza ispezioni

1

44

TECNOGAS Fumisteria ed accessori 2022 | Flue system and accessories 2022
