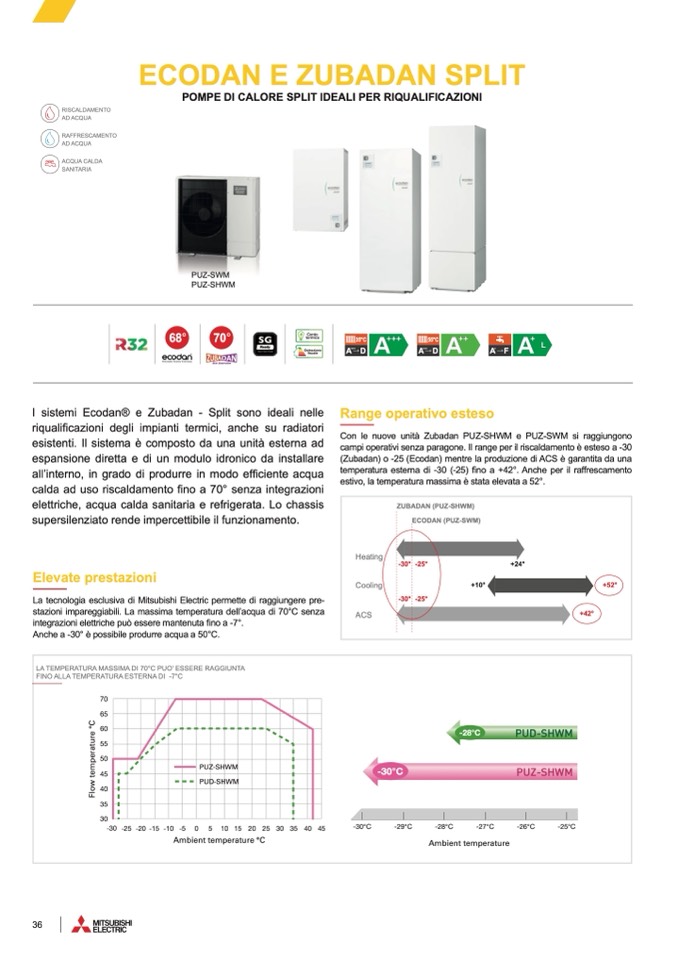

ECODAN E ZUBADAN SPLIT

POMPE DI CALORE SPLIT IDEALI PER RIQUALIFICAZIONI

High Performance

Extended Heating Operation Range down to -30°C and higher

flowTemperature up to 70°C

Mitsubishi Electric’s unique technology and compressors allow the heat pump to achieve the wider guaranteed heating operation range. max 60°

flow temperature can be maintained down to ambient -13°C. Even at ambient -30°C, the flow temperature can be kept 50°C.

The maximum flow temperature of 70°C can be achieved down to -7°C.

70

65

60

55

50

45

40

35

68°

PUZ-SWM

PUZ-SHWM

70°

PUZ-SHWM

PUD-SHWM

A

-30°C

A

-28°C

++

P

A

UD-SHWM

+

PUZ-SHWM

-26°C

-25°C
