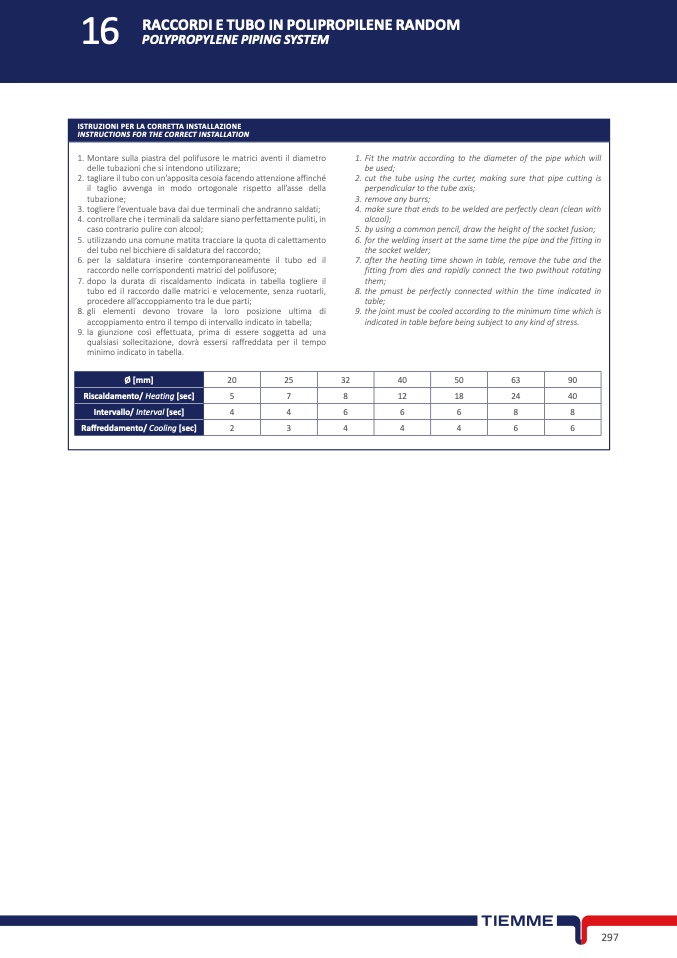

16RACCORDI E TUBO IN POLIPROPILENE RANDOM

POLYPROPYLENE PIPING SYSTEM

ISTRUZIONI PER LA CORRETTA INSTALLAZIONE

INSTRUCTIONS FOR THE CORRECT INSTALLATIO

N

1. Montare sulla piastra del polifusore le matrici aventi il diametr

o

delle tubazioni che si intendono utilizzare;

2. tagliare il tubo con un’apposita cesoia facendo attenzione affinché

il taglio avvenga in modo ortogonale rispetto all’asse della

tubazione

;

3. togliere l’eventuale bava dai due terminali che andranno saldati

;

4. controllare che i terminali da saldare siano perfettamente puliti, in

caso contrario pulire con alcool;

5. utilizzando una comune matita tracciare la quota di calettamento

del tubo nel bicchiere di saldatura del raccordo;

6. per la saldatura inserire contemporaneamente il tubo ed i

l

raccordo nelle corrispondenti matrici del polifusore

;

7. dopo la durata di riscaldamento indicata in tabella togliere il

tubo ed il raccordo dalle matrici e velocemente, senza ruotarli

,

procedere all’accoppiamento tra le due parti;

8. gli elementi devono trovare la loro posizione ultima d

i

accoppiamento entro il tempo di intervallo indicato in tabella;

9. la giunzione così effettuata, prima di essere soggetta ad una

qualsiasi sollecitazione, dovrà essersi raffreddata per il temp

o

minimo indicato in tabella

.

1. Fit the matrix according to the diameter of the pipe which will

be used

;

2. cut the tube using the curter, making sure that pipe cutting is

perpendicular to the tube axis

;

3. remove any burrs;

4. make sure that ends to be welded are perfectly clean (clean with

alcool);

5. by using a common pencil, draw the height of the socket fusion;

6. for the welding insert at the same time the pipe and the fitting i

n

the socket welder

;

7. after the heating time shown in table, remove the tube and th

e

fitting from dies and rapidly connect the two pwithout rotatin

g

them;

8. the pmust be perfectly connected within the time indicated in

table

;

9. the joint must be cooled according to the minimum time which is

indicated in table before being subject to any kind of stress

.

Ø [mm]

20

25

32

40

50

63

9

0

Riscaldamento/ Heating [sec]

5

7

8

12

18

24

4

0

Intervallo/ Interval [sec]

4

4

6

6

6

8

8

Raffreddamento/ Cooling [sec]

2

3

4

4

4

6

6
