06RACCORDI A COMPRESSIONE CON TENUTA O-RING PER TUBO RAME - SERIE 1350

1350 SERIES - COMPRESSION FITTINGS WITH O-RING FOR COPPER PIP

E

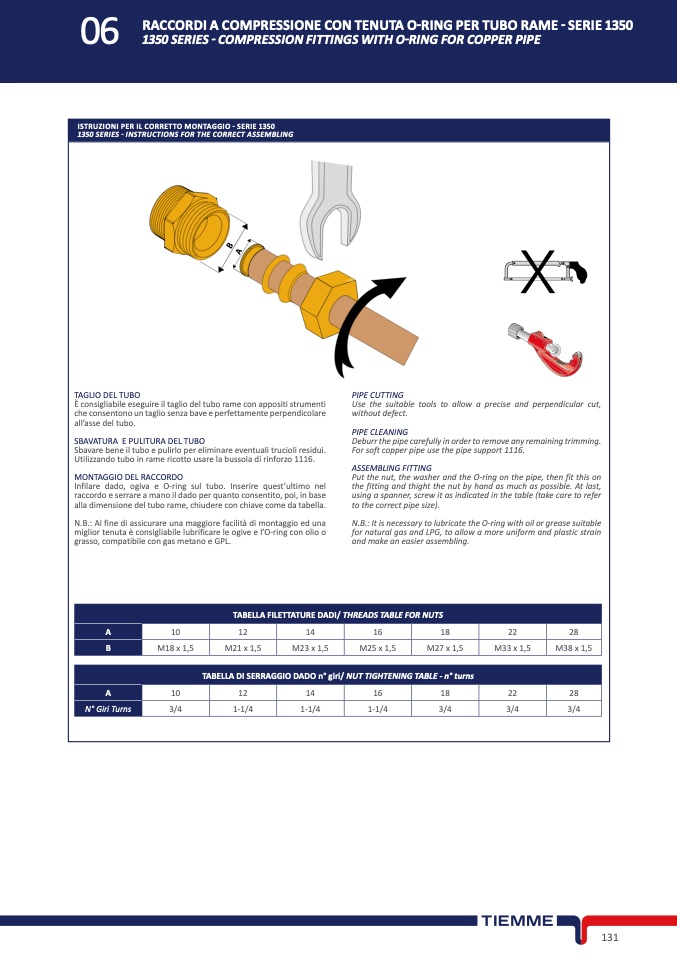

ISTRUZIONI PER IL CORRETTO MONTAGGIO - SERIE 1350

1350 SERIES - INSTRUCTIONS FOR THE CORRECT ASSEMBLIN

G

TAGLIO DEL TUBO

È consigliabile eseguire il taglio del tubo rame con appositi strumenti

che consentono un taglio senza bave e perfettamente perpendicolar

e

all’asse del tubo.

SBAVATURA E PULITURA DEL TUB

O

Sbavare bene il tubo e pulirlo per eliminare eventuali trucioli residui

.

Utilizzando tubo in rame ricotto usare la bussola di rinforzo 1116.

MONTAGGIO DEL RACCORD

O

Infilare dado, ogiva e O-ring sul tubo. Inserire quest’ultimo nel

raccordo e serrare a mano il dado per quanto consentito, poi, in base

alla dimensione del tubo rame, chiudere con chiave come da tabella.

N.B.: Al fine di assicurare una maggiore facilità di montaggio ed un

a

miglior tenuta è consigliabile lubrificare le ogive e l’O-ring con olio

o

grasso, compatibile con gas metano e GPL

.

PIPE CUTTIN

G

Use the suitable tools to allow a precise and perpendicular cut,

without defect.

PIPE CLEANING

Deburr the pipe carefully in order to remove any remaining trimming.

For soft copper pipe use the pipe support 1116

.

ASSEMBLING FITTING

Put the nut, the washer and the O-ring on the pipe, then fit this o

n

the fitting and thight the nut by hand as much as possible. At last,

using a spanner, screw it as indicated in the table (take care to refer

to the correct pipe size).

N.B.: It is necessary to lubricate the O-ring with oil or grease suitable

for natural gas and LPG, to allow a more uniform and plastic strain

and make an easier assembling.

TABELLA FILETTATURE DADI/ THREADS TABLE FOR NUT

S

A

10

12

14

16

18

22

2

8

B

M18 x 1,5

M21 x 1,5

M23 x 1,5

M25 x 1,5

M27 x 1,5

M33 x 1,5

M38 x 1,

5

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turn

s

A

10

12

14

16

18

22

2

8

N° Giri Turns

3/4

1-1/4

1-1/4

1-1/4

3/4

3/4

3/

4
