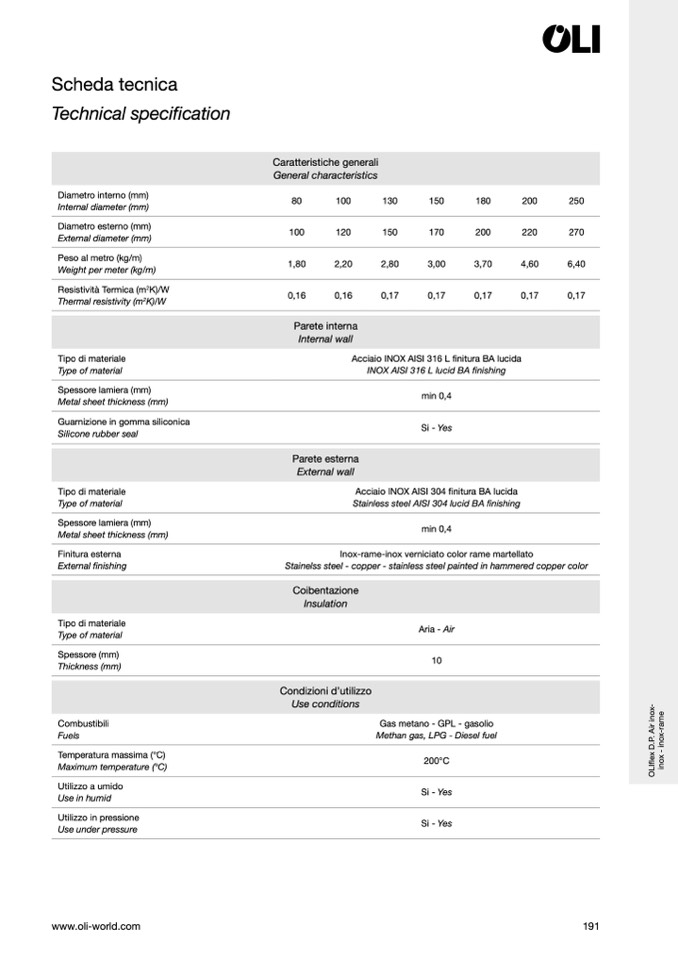

Scheda tecnica

Technical specification

Diametro interno (mm)

Internal diameter (mm)

Diametro esterno (mm)

External diameter (mm)

Peso al metro (kg/m)

Weight per meter (kg/m)

Resistività Termica (m

2

K)/W

Thermal resistivity (m

2

K)/W

Tipo di materiale

Type of material

Spessore lamiera (mm)

Metal sheet thickness (mm)

Guarnizione in gomma siliconica

Silicone rubber seal

Tipo di materiale

Type of material

Spessore lamiera (mm)

Metal sheet thickness (mm)

Finitura esterna

External finishing

Tipo di materiale

Type of material

Spessore (mm)

Thickness (mm)

Combustibili

Fuels

Temperatura massima (°C)

Maximum temperature (°C)

Utilizzo a umido

Use in humid

Utilizzo in pressione

Use under pressure

80

100

1,80

0,16

100

130

120

150

2,20

2,80

0,16

0,17

150

180

200

250

170

200

220

270

3,00

3,70

4,60

6,40

0,17

0,17

0,17

0,17

Caratteristiche generali

General characteristics

Parete interna

Internal wall

Acciaio INOX AISI 316 L finitura BA lucida

INOX AISI 316 L lucid BA finishing

min 0,4

Si - Yes

Acciaio INOX AISI 304 finitura BA lucida

Stainless steel AISI 304 lucid BA finishing

min 0,4

Inox-rame-inox verniciato color rame martellato

Parete esterna

External wall

Stainelss steel - copper - stainless steel painted in hammered copper color

Aria - Air

10

Gas metano - GPL - gasolio

Methan gas, LPG - Diesel fuel

200°C

Si - Yes

Si - Yes

Coibentazione

Insulation

Condizioni d’utilizzo

Use conditions
