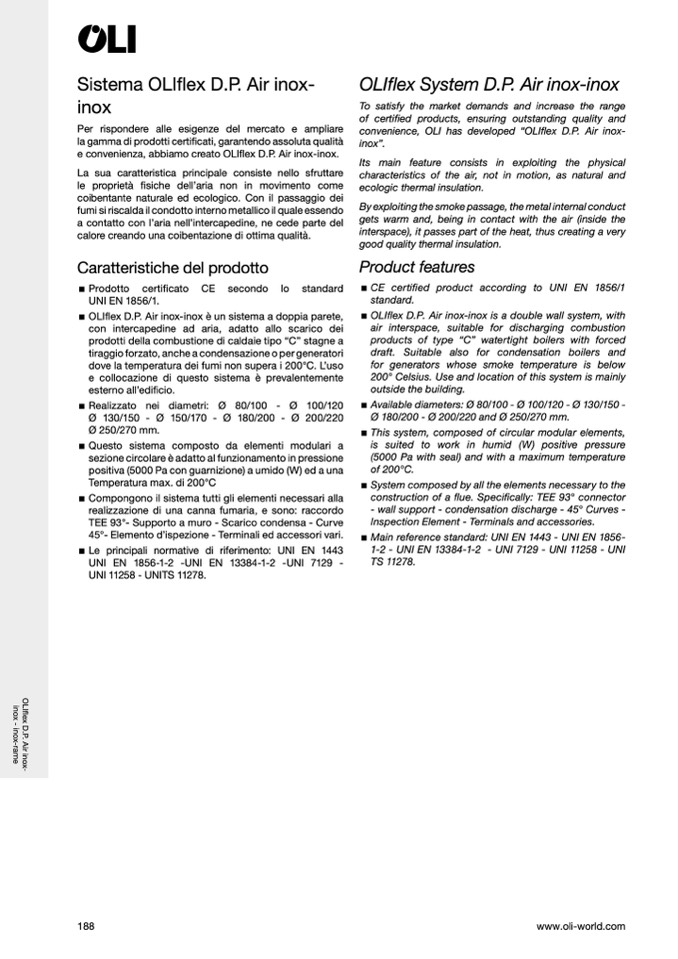

Sistema OLIflex D.P. Air inox-

inox

Per rispondere alle esigenze del mercato e ampliare

la gamma di prodotti certificati, garantendo assoluta qualità

e convenienza, abbiamo creato OLI

flex D.P. Air inox-inox.

La sua caratteristica principale consiste nello sfruttare

le proprietà fisiche dell’aria non in movimento come

coibentante naturale ed ecologico. Con il passaggio dei

fumi si riscalda il condotto interno metallico il quale essendo

a contatto con l’aria nell’intercapedine, ne cede parte del

calore creando una coibentazione di ottima qualità.

Caratteristiche del prodotto



Prodotto certificato CE secondo lo standard

UNI EN 1856/1.



OLIflex D.P. Air inox-inox è un sistema a doppia parete,

con intercapedine ad aria, adatto allo scarico dei

prodotti della combustione di caldaie tipo “C” stagne a

tiraggio forzato, anche a condensazione o per generatori

dove la temperatura dei fumi non supera i 200°C. L’uso

e collocazione di questo sistema è prevalentemente

esterno all’edificio.



Realizzato nei diametri: Ø 80/100 - Ø 100/120

Ø 130/150 - Ø 150/170 - Ø 180/200 - Ø 200/220

Ø 250/270 mm.



Questo sistema composto da elementi modulari a

sezione circolare è adatto al funzionamento in pressione

positiva (5000 Pa con guarnizione) a umido (W) ed a una

Temperatura max. di 200°C



Compongono il sistema tutti gli elementi necessari alla

realizzazione di una canna fumaria, e sono: raccordo

TEE 93°- Supporto a muro - Scarico condensa - Curve

45°- Elemento d’ispezione - Terminali ed accessori vari.



Le principali normative di riferimento: UNI EN 1443

UNI EN 1856-1-2 -UNI EN 13384-1-2 -UNI 7129 -

UNI 11258 - UNITS 11278.

OLIflex System D.P. Air inox-inox

To satisfy the market demands and increase the range

of certified products, ensuring outstanding quality and

convenience, OLI has developed “OLIflex D.P. Air inox-

inox”.

Its main feature consists in exploiting the physical

characteristics of the air, not in motion, as natural and

ecologic thermal insulation.

By exploiting the smoke passage, the metal internal conduct

gets warm and, being in contact with the air (inside the

interspace), it passes part of the heat, thus creating a very

good quality thermal insulation.

Product features



CE certified product according to UNI EN 1856/1

standard.

188

www.oli-world.com











OLIflex D.P. Air inox-inox is a double wall system, with

air interspace, suitable for discharging combustion

products of type “C” watertight boilers with forced

draft. Suitable also for condensation boilers and

for generators whose smoke temperature is below

200° Celsius. Use and location of this system is mainly

outside the building.

Available diameters: Ø 80/100 - Ø 100/120 - Ø 130/150 -

Ø 180/200 - Ø 200/220 and Ø 250/270 mm.

This system, composed of circular modular elements,

is suited to work in humid (W) positive pressure

(5000 Pa with seal) and with a maximum temperature

of 200°C.

System composed by all the elements necessary to the

construction of a flue. Specifically: TEE 93° connector

- wall support - condensation discharge - 45° Curves -

Inspection Element - Terminals and accessories.

Main reference standard: UNI EN 1443 - UNI EN 1856-

1-2 - UNI EN 13384-1-2 - UNI 7129 - UNI 11258 - UNI

TS 11278.
