F

i

r

e

p

r

o

t

e

c

t

i

o

n

P

l

u

s

4

0

0

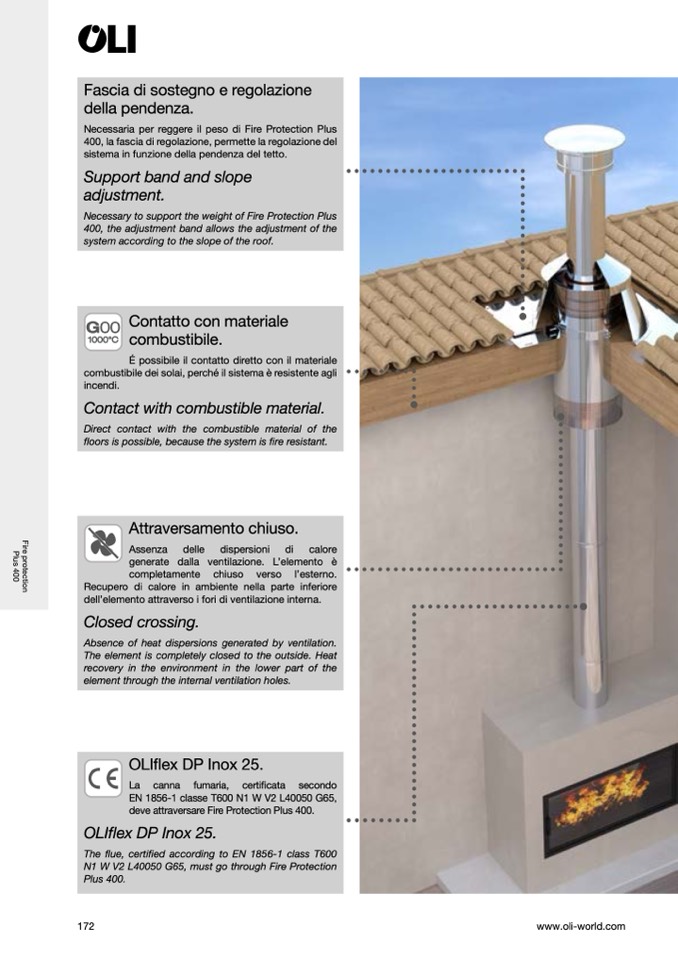

Fascia di sostegno e regolazione

della pendenza.

Necessaria per reggere il peso di Fire Protection Plus

400, la fascia di regolazione, permette la regolazione del

sistema in funzione della pendenza del tetto.

Support band and slope

adjustment.

Necessary to support the weight of Fire Protection Plus

400, the adjustment band allows the adjustment of the

system according to the slope of the roof.

G00

Contatto con materiale

1000°C

combustibile.

É possibile il contatto diretto con il materiale

combustibile dei solai, perché il sistema è resistente agli

incendi.

Contact with combustible material.

Direct contact with the combustible material of the

floors is possible, because the system is fire resistant.

Attraversamento chiuso.

Assenza delle dispersioni di calore

generate dalla ventilazione. L’elemento è

completamente chiuso verso l’esterno.

Recupero di calore in ambiente nella parte inferiore

dell’elemento attraverso i fori di ventilazione interna.

Closed crossing.

Absence of heat dispersions generated by ventilation.

The element is completely closed to the outside. Heat

recovery in the environment in the lower part of the

element through the internal ventilation holes.

OLIflex DP Inox 25.

La canna fumaria, certificata secondo

EN 1856-1 classe T600 N1 W V2 L40050 G65,

deve attraversare Fire Protection Plus 400.

OLIflex DP Inox 25.

The flue, certified according to EN 1856-1 class T600

N1 W V2 L40050 G65, must go through Fire Protection

Plus 400.

172
