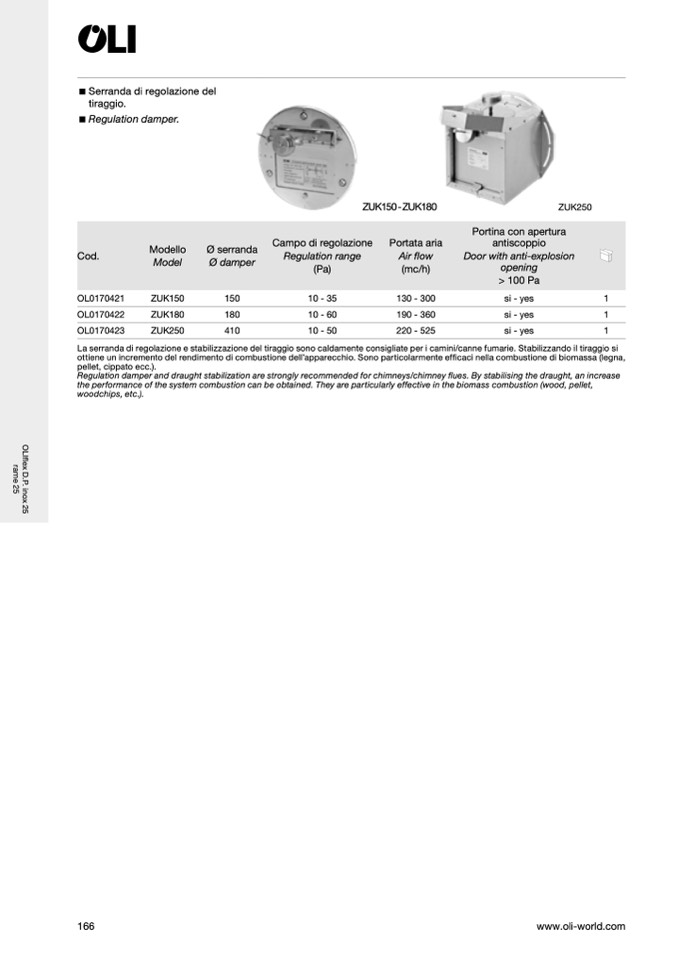

Serranda di regolazione del

tiraggio.

Regulation damper.

ZUK150 - ZUK180

130 - 300

190 - 360

220 - 525

ZUK250

Cod.

Modello

Model

Ø serranda

Ø damper

Campo di regolazione

Regulation range

(Pa)

Portata aria

Air flow

(mc/h)

Portina con apertura

antiscoppio

Door with anti-explosion

opening

> 100 Pa

OL0170421

OL0170422

OL0170423

ZUK150

150

ZUK180

180

ZUK250

410

10 - 35

10 - 60

10 - 50

si - yes

si - yes

si - yes

1

1

1

La serranda di regolazione e stabilizzazione del tiraggio sono caldamente consigliate per i camini/canne fumarie. Stabilizzando il tiraggio si

ottiene un incremento del rendimento di combustione dell’apparecchio. Sono particolarmente efficaci nella combustione di biomassa (legna,

pellet, cippato ecc.).

Regulation damper and draught stabilization are strongly recommended for chimneys/chimney flues. By stabilising the draught, an increase

the performance of the system combustion can be obtained. They are particularly effective in the biomass combustion (wood, pellet,

woodchips, etc.).
