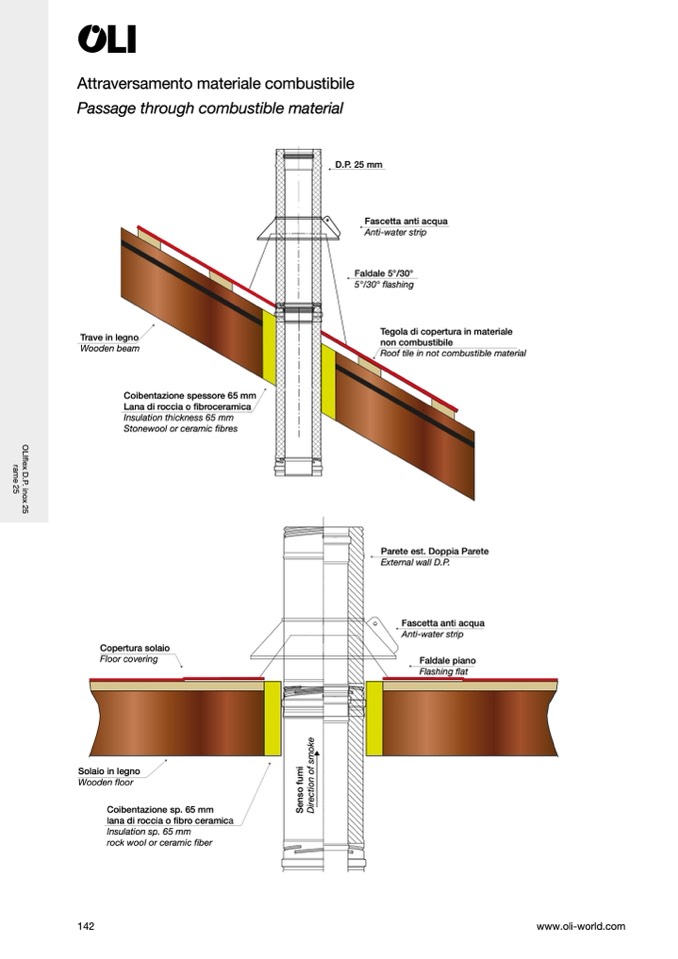

Attraversamento materiale combustibile

Passage through combustible material

Trave in legno

Wooden beam

Coibentazione spessore 65 mm

Lana di roccia o fibroceramica

Insulation thickness 65 mm

Stonewool or ceramic fibres

D.P. 25 mm

Fascetta anti acqua

Anti-water strip

Faldale 5°/30°

5°/30° flashing

Tegola di copertura in materiale

non combustibile

Roof tile in not combustible material

Copertura solaio

Floor covering

Solaio in legno

Wooden floor

Coibentazione sp. 65 mm

lana di roccia o fibro ceramica

Insulation sp. 65 mm

rock wool or ceramic fiber

Parete est. Doppia Parete

External wall D.P.

Fascetta anti acqua

Anti-water strip

Faldale piano

Flashing flat
