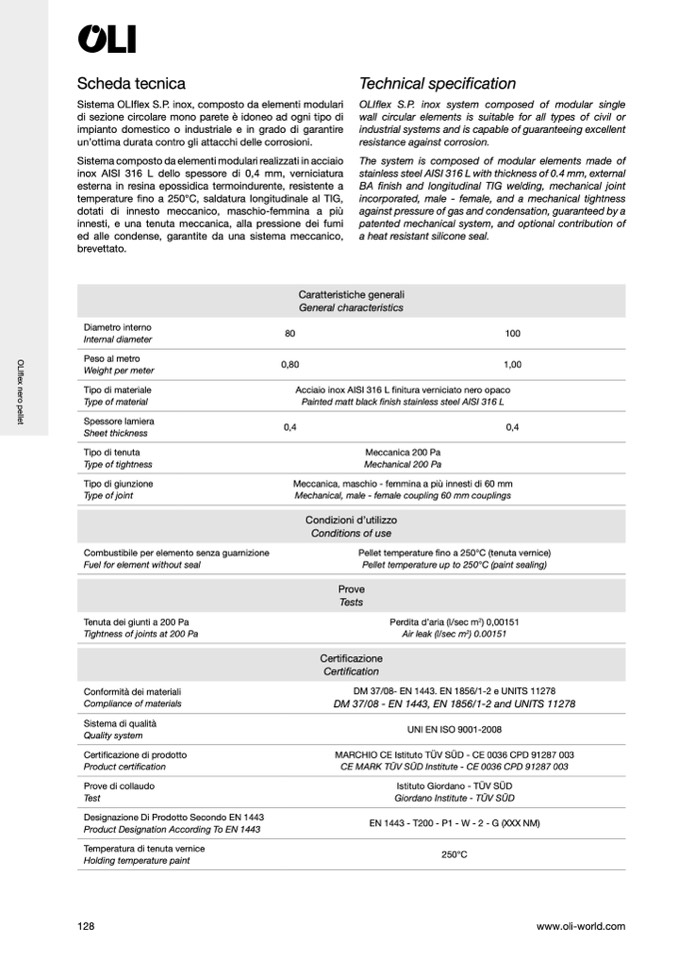

Scheda tecnica

Sistema OLIflex S.P. inox, composto da elementi modulari

di sezione circolare mono parete è idoneo ad ogni tipo di

impianto domestico o industriale e in grado di garantire

un’ottima durata contro gli attacchi delle corrosioni.

Sistema composto da elementi modulari realizzati in acciaio

inox AISI 316 L dello spessore di 0,4 mm, verniciatura

esterna in resina epossidica termoindurente, resistente a

temperature fino a 250°C, saldatura longitudinale al TIG,

dotati di innesto meccanico, maschio-femmina a più

innesti, e una tenuta meccanica, alla pressione dei fumi

ed alle condense, garantite da una sistema meccanico,

brevettato.

Technical specification

OLIflex S.P. inox system composed of modular single

wall circular elements is suitable for all types of civil or

industrial systems and is capable of guaranteeing excellent

resistance against corrosion.

The system is composed of modular elements made of

stainless steel AISI 316 L with thickness of 0.4 mm, external

BA finish and longitudinal TIG welding, mechanical joint

incorporated, male - female, and a mechanical tightness

against pressure of gas and condensation, guaranteed by a

patented mechanical system, and optional contribution of

a heat resistant silicone seal.

100

1,00

Diametro interno

Internal diameter

Peso al metro

Weight per meter

Tipo di materiale

Type of material

Spessore lamiera

Sheet thickness

Tipo di tenuta

Type of tightness

Tipo di giunzione

Type of joint

Combustibile per elemento senza guarnizione

Fuel for element without seal

Tenuta dei giunti a 200 Pa

Tightness of joints at 200 Pa

Conformità dei materiali

Compliance of materials

Sistema di qualità

Quality system

Certificazione di prodotto

Product certification

Prove di collaudo

Test

Designazione Di Prodotto Secondo EN 1443

Product Designation According To EN 1443

Temperatura di tenuta vernice

Holding temperature paint

80

0,80

Acciaio inox AISI 316 L finitura verniciato nero opaco

Painted matt black finish stainless steel AISI 316 L

0,4

0,4

Meccanica 200 Pa

Mechanical 200 Pa

Meccanica, maschio - femmina a più innesti di 60 mm

Mechanical, male - female coupling 60 mm couplings

Pellet temperature fino a 250°C (tenuta vernice)

Pellet temperature up to 250°C (paint sealing)

Perdita d’aria (l/sec m

2

) 0,00151

Air leak (l/sec m

2

) 0.00151

DM 37/08- EN 1443. EN 1856/1-2 e UNITS 11278

DM 37/08 - EN 1443, EN 1856/1-2 and UNITS 11278

UNI EN ISO 9001-2008

MARCHIO CE Istituto TÜV SÜD - CE 0036 CPD 91287 003

CE MARK TÜV SÜD Institute - CE 0036 CPD 91287 003

Istituto Giordano - TÜV SÜD

Giordano Institute - TÜV SÜD

EN 1443 - T200 - P1 - W - 2 - G (XXX NM)

250°C

128
