BOSSINI

BRACCI E SOFFIONI – SHOWER HEADS AND ARMS

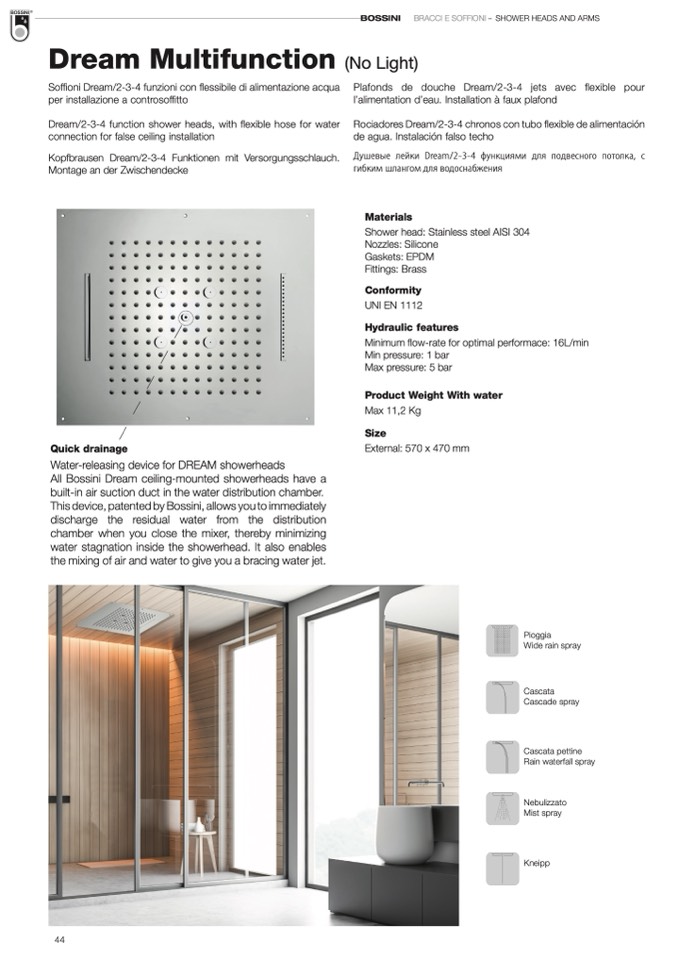

Dream Multifunction

(No Light)

Soffioni Dream/2-3-4 funzioni con flessibile di alimentazione acqua

per installazione a controsoffitto

Dream/2-3-4 function shower heads, with flexible hose for water

connection for false ceiling installation

Kopfbrausen Dream/2-3-4 Funktionen mit Versorgungsschlauch.

Montage an der Zwischendecke

Plafonds de douche Dream/2-3-4 jets avec flexible pour

l’alimentation d’eau. Installation à faux plafond

Rociadores Dream/2-3-4 chronos con tubo flexible de alimentación

de agua. Instalación falso techo

Душевые лейки Dream/2-3-4 функциями для подвесного потолка, с

гибким шлангом для водоснабжения

Materials

Shower head: Stainless steel AISI 304

Nozzles: Silicone

Gaskets: EPDM

Fittings: Brass

Conformity

UNI EN 1112

Hydraulic features

Minimum flow-rate for optimal performace: 16L/min

Min pressure: 1 bar

Max pressure: 5 bar

Quick drainage

Water-releasing device for DREAM showerheads

All Bossini Dream ceiling-mounted showerheads have a

built-in air suction duct in the water distribution chamber.

This device, patented by Bossini, allows you to immediately

discharge the residual water from the distribution

chamber when you close the mixer, thereby minimizing

water stagnation inside the showerhead. It also enables

the mixing of air and water to give you a bracing water jet.

Product Weight With water

Max 11,2 Kg

Size

External: 570 x 470 mm

Pioggia

Wide rain spray

Cascata

Cascade spray

Cascata pettine

Rain waterfall spray

Nebulizzato

Mist spray

Kneipp

44
