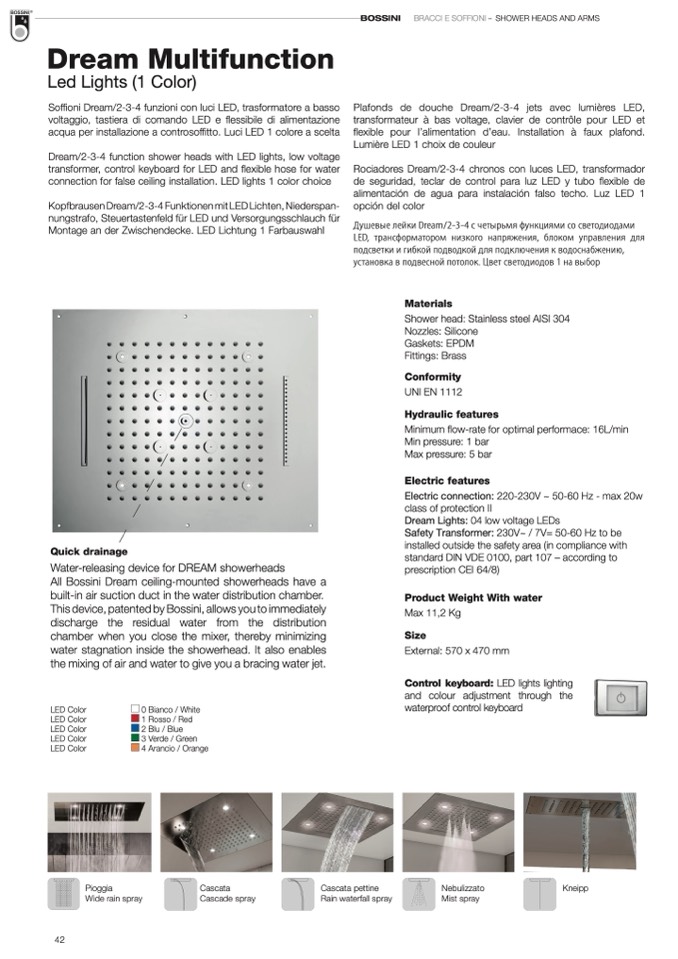

Dream Multifunction
Led Lights (1 Color)
Soffioni Dream/2-3-4 funzioni con luci LED, trasformatore a basso
voltaggio, tastiera di comando LED e flessibile di alimentazione
acqua per installazione a controsoffitto. Luci LED 1 colore a scelta
Dream/2-3-4 function shower heads with LED lights, low voltage
transformer, control keyboard for LED and flexible hose for water
connection for false ceiling installation. LED lights 1 color choice
Kopfbrausen Dream/2-3-4 Funktionen mit LED Lichten, Niederspan-
nungstrafo, Steuertastenfeld für LED und Versorgungsschlauch für
Montage an der Zwischendecke. LED Lichtung 1 Farbauswahl
Plafonds de douche Dream/2-3-4 jets avec lumières LED,
transformateur à bas voltage, clavier de contrôle pour LED et
flexible pour l’alimentation d’eau. Installation à faux plafond.
Lumière LED 1 choix de couleur
Rociadores Dream/2-3-4 chronos con luces LED, transformador
de seguridad, teclar de control para luz LED y tubo flexible de
alimentación de agua para instalación falso techo. Luz LED 1
opción del color
Душевые лейки Dream/2-3-4 с четырьмя функциями со светодиодами
LED, трансформатором низкого напряжения, блоком управления для
подсветки и гибкой подводкой для подключения к водоснабжению,
установка в подвесной потолок. Цвет светодиодов 1 на выбор
Materials
Shower head: Stainless steel AISI 304
Nozzles: Silicone
Gaskets: EPDM
Fittings: Brass
Conformity
UNI EN 1112
Hydraulic features
Minimum flow-rate for optimal performace: 16L/min
Min pressure: 1 bar
Max pressure: 5 bar
Electric features
Electric connection: 220-230V ~ 50-60 Hz - max 20w
class of protection II
Dream Lights: 04 low voltage LEDs
Safety Transformer: 230V~ / 7V= 50-60 Hz to be
installed outside the safety area (in compliance with
standard DIN VDE 0100, part 107 – according to
prescription CEI 64/8)
Product Weight With water
Max 11,2 Kg
Size
External: 570 x 470 mm
Control keyboard: LED lights lighting
and colour adjustment through the
waterproof control keyboard
BOSSINI
BRACCI E SOFFIONI – SHOWER HEADS AND ARMS
Quick drainage
Water-releasing device for DREAM showerheads
All Bossini Dream ceiling-mounted showerheads have a
built-in air suction duct in the water distribution chamber.
This device, patented by Bossini, allows you to immediately
discharge the residual water from the distribution
chamber when you close the mixer, thereby minimizing
water stagnation inside the showerhead. It also enables
the mixing of air and water to give you a bracing water jet.
LED Color
LED Color
LED Color
LED Color
LED Color
Pioggia
Wide rain spray
Cascade spray
0 Bianco / White
1 Rosso / Red
2 Blu / Blue
3 Verde / Green
4 Arancio / Orange
42
Cascata
Cascata pettine
Rain waterfall spray
Nebulizzato
Mist spray
Kneipp
