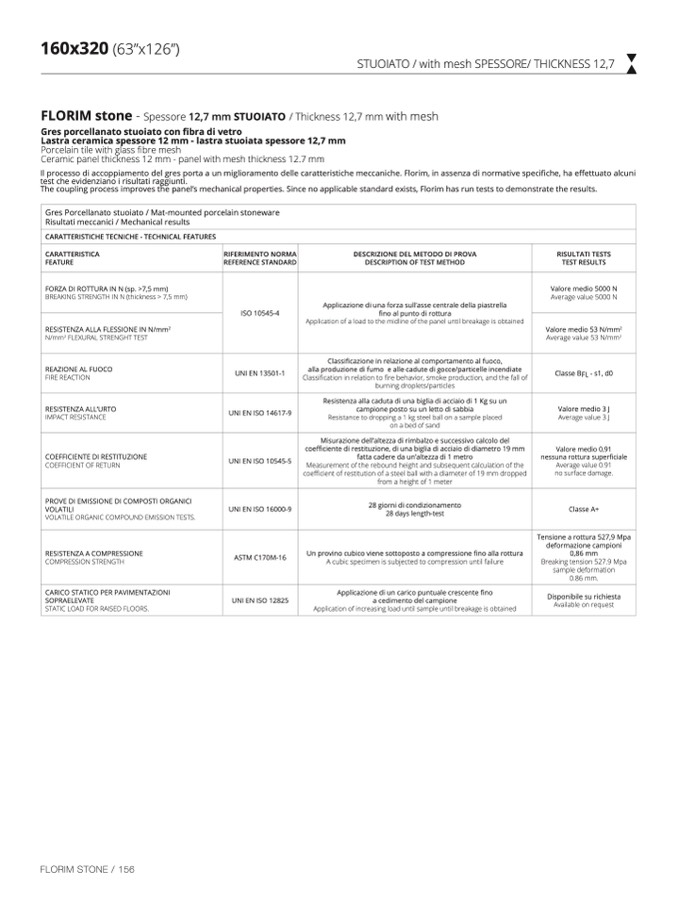

160x320 (63”x126”)

STUOIATO / with mesh SPESSORE/ THICKNESS 12,

7

FLORIM stone - Spessore 12,7 mm STUOIATO / Thickness 12,7 mm with mes

h

Gres porcellanato stuoiato con fibra di vetro

a

s

t

ra ceramica spessore 12 mm - lastra stuoiata spessore 12,7 m

m

r

c

e

lain tile with glass

fibre mes

h

e

r

am

ic panel thickness 12 mm - panel with mesh thickness 12.7 mm

Il processo di accoppiamento del gres porta a un miglioramento delle caratteristiche meccaniche. Florim, in assenza di normative speci

fiche, ha effettuato alcun

i

t

c

he evidenziano i risultati raggiunti.

T

h

e

coupling process improves the panel’s mechanical properties. Since no applicable standard exists, Florim has run tests to demonstrate the results.

Gres Porcellanato stuoiato / Mat-mounted porcelain stonewar

e

Risultati meccanici / Mechanical result

s

CARATTERISTICHE TECNICHE - TECHNICAL FEATURES

CARATTERISTIC

A

FEATUR

E

RIFERIMENTO NORMA

REFERENCE STANDARD

DESCRIZIONE DEL METODO DI PROVA

DESCRIPTION OF TEST METHO

D

RISULTATI TESTS

TEST RESULT

S

FORZA DI ROTTURA IN N (sp. >7,5 mm)

BREAKING STRENGTH IN N (thickness > 7,5 mm

)

Valore medio 5000 N

Average value 5000 N

ISO 10545-4

Applicazione di una forza sull’asse centrale della piastrell

a

fino al punto di rottur

a

Application of a load to the midline of the panel until breakage is obtained

RESISTENZA ALLA FLESSIONE IN N/mm

2

N/mm2 FLEXURAL STRENGHT TES

T

Valore medio 53 N/mm

2

Average value 53 N/mm2

REAZIONE AL FUOC

O

FIRE REACTION

UNI EN 13501-1

Classificazione in relazione al comportamento al fuoco,

alla produzione di fumo e alle cadute di gocce/particelle incendiate

Classi

fication in relation to

fire behavior, smoke production, and the fall of

burning droplets/particle

s

Classe BFL - s1, d0

RESISTENZA ALL’URTO

IMPACT RESISTANCE

UNI EN ISO 14617-

9

Resistenza alla caduta di una biglia di acciaio di 1 Kg su un

campione posto su un letto di sabbi

a

Resistance to dropping a 1 kg steel ball on a sample place

d

on a bed of sand

Valore medio 3 J

Average value 3 J

COEFFICIENTE DI RESTITUZIONE

COEFFICIENT OF RETURN

UNI EN ISO 10545-

5

Misurazione dell’altezza di rimbalzo e successivo calcolo de

l

coefficiente di restituzione, di una biglia di acciaio di diametro 19 m

m

fatta cadere da un’altezza di 1 metr

o

Measurement of the rebound height and subsequent calculation of th

e

coe

fficient of restitution of a steel ball with a diameter of 19 mm dropped

from a height of 1 meter

Valore medio 0,91

nessuna rottura superficiale

Average value 0.91

no surface damage.

PROVE DI EMISSIONE DI COMPOSTI ORGANICI

VOLATILI

VOLATILE ORGANIC COMPOUND EMISSION TESTS.

UNI EN ISO 16000-9

28 giorni di condizionamento

28 days length-test

Classe A+

COMPRESSION STRENGTH

RESISTENZA A COMPRESSION

E

ASTM C170M-16

Un provino cubico viene sottoposto a compressione

fino alla rottur

a

A cubic specimen is subjected to compression until failure

Tensione a rottura 527,9 Mpa

deformazione campioni

0,86 mm

Breaking tension 527.9 Mp

a

sample deformation

0.86 mm.

CARICO STATICO PER PAVIMENTAZIONI

SOPRAELEVATE

STATIC LOAD FOR RAISED FLOORS.

UNI EN ISO 1282

5

Applicazione di un carico puntuale crescente

fino

a cedimento del campion

e

Application of increasing load until sample until breakage is obtained

Disponibile su richiesta

Available on request
