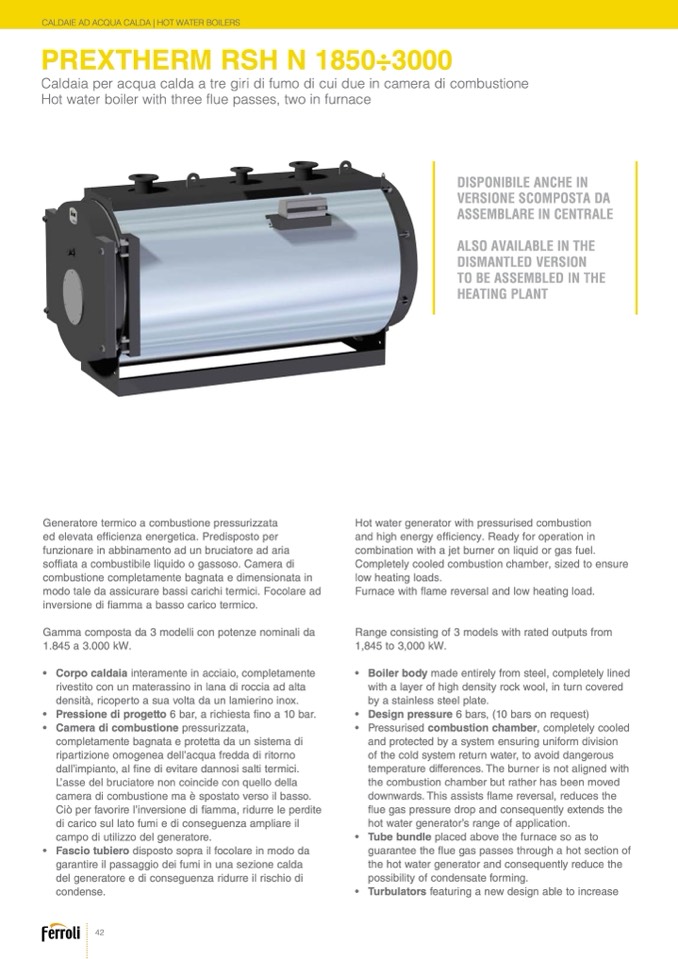

CALDAIE AD ACQUA CALDA | HOT WATER BOILERS

PREXTHERM RSH N 1850÷3000

Caldaia per acqua calda a tre giri di fumo di cui due in camera di combustione

Hot water boiler with three flue passes, two in furnace

Generatore termico a combustione pressurizzata

ed elevata efficienza energetica. Predisposto per

funzionare in abbinamento ad un bruciatore ad aria

soffiata a combustibile liquido o gassoso. Camera di

combustione completamente bagnata e dimensionata in

modo tale da assicurare bassi carichi termici. Focolare ad

inversione di fiamma a basso carico termico.

Gamma composta da 3 modelli con potenze nominali da

1.845 a 3.000 kW.

• Corpo caldaia interamente in acciaio, completamente

rivestito con un materassino in lana di roccia ad alta

densit

à, ricoperto a sua volta da un lamierino inox.

• Pressione di progetto 6 bar, a richiesta fino a 10 bar.

• Camera di combustione pressurizzata,

completamente bagnata e protetta da un sistema di

ripartizione omogenea dell’acqua fredda di ritorno

dall’impianto, al fine di evitare dannosi salti termici.

L’asse del bruciatore non coincide con quello della

camera di combustione ma

è spostato verso il basso.

Ci

ò per favorire l’inversione di fiamma, ridurre le perdite

di carico sul lato fumi e di conseguenza ampliare il

campo di utilizzo del generatore.

• Fascio tubiero disposto sopra il focolare in modo da

garantire il passaggio dei fumi in una sezione calda

del generatore e di conseguenza ridurre il rischio di

condense.

Hot water generator with pressurised combustion

and high energy efficiency. Ready for operation in

combination with a jet burner on liquid or gas fuel.

Completely cooled combustion chamber, sized to ensure

low heating loads.

Furnace with

flame reversal and low heating load.

Range consisting of 3 models with rated outputs from

1,845 to 3,000 kW.

• Boiler body made entirely from steel, completely lined

with a layer of high density rock wool, in turn covered

by a stainless steel plate.

• Design pressure 6 bars, (10 bars on request)

• Pressurised combustion chamber, completely cooled

and protected by a system ensuring uniform division

of the cold system return water, to avoid dangerous

temperature differences. The burner is not aligned with

the combustion chamber but rather has been moved

downwards. This assists flame reversal, reduces the

flue gas pressure drop and consequently extends the

hot water generator’s range of application.

• Tube bundle placed above the furnace so as to

guarantee the flue gas passes through a hot section of

the hot water generator and consequently reduce the

possibility of condensate forming.

• Turbulators featuring a new design able to increase

DISPONIBILE ANCHE IN

VERSIONE SCOMPOSTA DA

ASSEMBLARE IN CENTRALE

ALSO AVAILABLE IN THE

DISMANTLED VERSION

TO BE ASSEMBLED IN THE

HEATING PLANT
