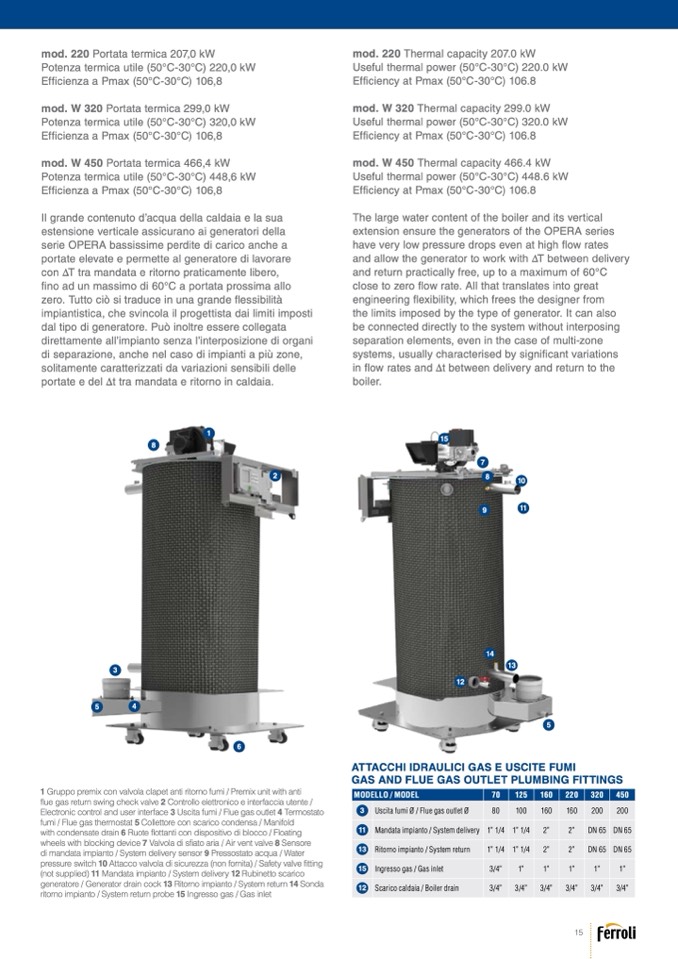

mod. 220 Portata termica 207,0 kW

Potenza termica utile (50°C-30°C) 220,0 kW

Efficienza a Pmax (50°C-30°C) 106,8

mod. W 320 Portata termica 299,0 kW

Potenza termica utile (50°C-30°C) 320,0 kW

Efficienza a Pmax (50°C-30°C) 106,8

mod. W 450 Portata termica 466,4 kW

Potenza termica utile (50°C-30°C) 448,6 kW

Efficienza a Pmax (50°C-30°C) 106,8

Il grande contenuto d’acqua della caldaia e la sua

estensione verticale assicurano ai generatori della

serie OPERA bassissime perdite di carico anche a

portate elevate e permette al generatore di lavorare

con ΔT tra mandata e ritorno praticamente libero,

fino ad un massimo di 60°C a portata prossima allo

zero. Tutto ciò si traduce in una grande

flessibilità

impiantistica, che svincola il progettista dai limiti imposti

dal tipo di generatore. Può inoltre essere collegata

direttamente all’impianto senza l’interposizione di organi

di separazione, anche nel caso di impianti a più zone,

solitamente caratterizzati da variazioni sensibili delle

portate e del Δt tra mandata e ritorno in caldaia.

1

mod. 220 Thermal capacity 207.0 kW

Useful thermal power (50°C-30°C) 220.0 kW

Efficiency at Pmax (50°C-30°C) 106.8

mod. W 320 Thermal capacity 299.0 kW

Useful thermal power (50°C-30°C) 320.0 kW

Efficiency at Pmax (50°C-30°C) 106.8

mod. W 450 Thermal capacity 466.4 kW

Useful thermal power (50°C-30°C) 448.6 kW

Efficiency at Pmax (50°C-30°C) 106.8

The large water content of the boiler and its vertical

extension ensure the generators of the OPERA series

have very low pressure drops even at high

flow rates

and allow the generator to work with ΔT between delivery

and return practically free, up to a maximum of 60°C

close to zero

flow rate. All that translates into great

engineering

flexibility, which frees the designer from

the limits imposed by the type of generator. It can also

be connected directly to the system without interposing

separation elements, even in the case of multi-zone

systems, usually characterised by signi

ficant variations

in

flow rates and Δt between delivery and return to the

boiler.

3

5

4

8

15

7

2

8

1 Gruppo premix con valvola clapet anti ritorno fumi / Premix unit with anti

flue gas return swing check valve 2 Controllo elettronico e interfaccia utente /

Electronic control and user interface 3 Uscita fumi / Flue gas outlet 4 Termostato

fumi / Flue gas thermostat 5 Collettore con scarico condensa / Manifold

with condensate drain 6 Ruote flottanti con dispositivo di blocco / Floating

wheels with blocking device 7 Valvola di sfiato aria / Air vent valve 8 Sensore

di mandata impianto / System delivery sensor 9 Pressostato acqua / Water

pressure switch 10 Attacco valvola di sicurezza (non fornita) / Safety valve fitting

(not supplied) 11 Mandata impianto / System delivery 12 Rubinetto scarico

generatore / Generator drain cock 13 Ritorno impianto / System return 14 Sonda

ritorno impianto / System return probe 15 Ingresso gas / Gas inlet

6

10

11

14

13

12

9

ATTACCHI IDRAULICI GAS E USCITE FUMI

GAS AND FLUE GAS OUTLET PLUMBING FITTINGS

5

MODELLO / MODEL

70

125

160

220

320

450

3

Uscita fumi Ø / Flue gas outlet Ø

80

100

160

160

200

200

11

Mandata impianto / System delivery

1” 1/4

1” 1/4

2”

2”

DN 65

DN 65

13

Ritorno impianto / System return

1” 1/4

1” 1/4

2”

2”

DN 65

DN 65

15

Ingresso gas / Gas inlet

3/4”

1”

1”

1”

1”

1”

12

Scarico caldaia / Boiler drain

3/4”

3/4”

3/4”

3/4”

3/4”

3/4”
